Dragflow DRH400 – High-Performance Self-Propelled Dredging System
For demanding marine and industrial applications, a reliable submersible dredge pump is essential to ensure efficient material handling and long-term operational performance. The Dragflow DRH400, supplied by Ace Centro Enterprises (ACE), is a heavy-duty self-propelled dredge equipped with steel cables and engineered for deep harbor dredging across marine, mining, and oil & gas industries.
At the heart of the DRH400 is the powerful Dragflow HY400 hydraulic dredging pump, specifically designed to tackle high-density slurry mixtures with ease. Built on a modular pontoon platform, this dredger operates efficiently at varying depths and performs exceptionally well even in low pH slurry conditions.
Designed for Versatility and Efficiency
ACE offers a complete range of electric and hydraulic submersible dredge pumps to meet the needs of diverse dredging and pumping projects, including:
Harbor and port dredging
Sand reclaiming
Water pumping operations
Mine tailing removal
Quarrying and aggregate processing
Waste pollution control
Heavy slurry pumping
Oil spill recovery
Tunneling and bentonite pumping
Sewage pumping
Dam and dike construction
Lake and channel dredging
Through its established sales network in the Arabian Gulf, ACE also supplies self-propelled dredgers with telescopic and ladder dredge pump configurations. These systems are widely used in Middle Eastern and African markets for canal cleaning and deep-sea dredging at marinas, jetties, ports, and offshore platforms.

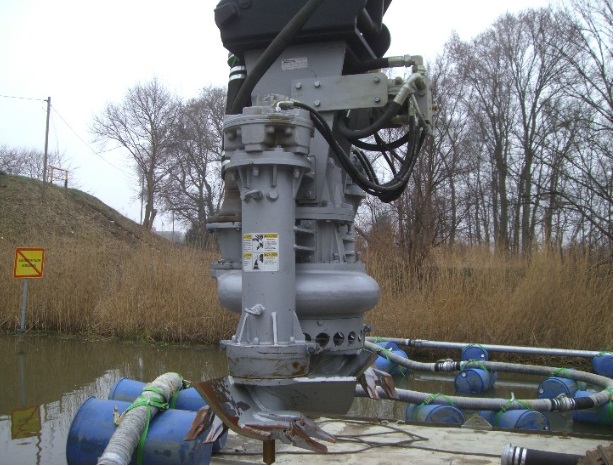

Product Specifications – Dragflow HY400 Submersible Dredge Pump
Advanced Agitator Technology
The HY400 pump features an advanced agitator system designed to efficiently lift and transfer medium to high specific weight slurry mixtures such as:
Mud
Slime
Silt
Sand
Gravel
This makes it an ideal solution for heavy-duty submersible dredging applications.
High-Capacity Slurry Handling
Handles slurries up to 1.7 specific gravity
Solids handling capability from 20 mm to 120 mm (5 inches)
Flow rates up to 4000 m³/hr
Pumping distances up to 1500 meters (extended distances achievable with booster pumps)
Dredging depths up to 300 meters, proven in dam construction projects
Built for Durability and Long Service Life
Low Operating Speed
Optimized operating speeds reduce wear and extend component lifespan.
Motor Protection Options
Temperature sensor embedded in the motor
Moisture sensor in the oil chamber
Advanced Seal System
Unique lip seal system with front deflector
Teflon layers resistant to both high and low pH conditions
High-precision machining and integrated grease injection points to maximize sealing system life
Wear-Resistant Components
All wear parts manufactured from High Chrome Alloy
Pump castings 100% made in Italy using premium-grade metallurgy for long-term durability
Electrical Configurations
Available in both 50 Hz and 60 Hz electric versions to meet global operational requirements
Why Choose the DRH400?
The Dragflow DRH400 combines modular design, steel cable stability, and powerful submersible dredge pump technology to deliver superior performance in deep and challenging environments. Its robust construction and advanced hydraulic system ensure maximum productivity, minimal downtime, and extended service intervals.
For contractors and project managers seeking a dependable submersible dredge pump solution, the DRH400 offers proven reliability, high capacity, and long-term operational value.
