Dragflow is a global leader in solid pumping solutions, with over 25 years of experience manufacturing heavy-duty submersible dredging pumps and complete dredging equipment. With a strong focus on continuous innovation, Dragflow designs and produces pumps and dredging systems for mining, industrial, and dredging applications. From its manufacturing base in Verona, Italy, Dragflow delivers Electric and Hydraulic Submersible Pumps engineered to operate under the most challenging site conditions, especially for slurries with high abrasive solids content.
Over the past 25 years, Dragflow pumps and dredgers have been deployed in deep-sea harbor dredging, sand mining, beach reclamation, and cleaning of lakes, rivers, and dams.

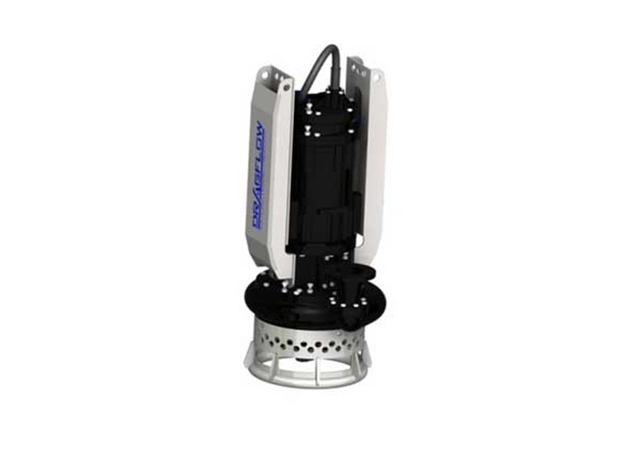

Key Specifications of Dragflow EL 1204 HH Electric Pump
Heavy-duty submersible pump capable of handling solids with specific gravity up to 1.6 t/m³
Agitator-equipped for effective solids handling
Low rotation speed and high abrasion resistance for extended durability
Pump capacity ranges from 100 m³/h to 300 m³/h
Pump power range: 75 kW to 90 kW
Head capacity: 28 m to 72 m
Solid handling capacity exceeds 70% by weight of material density
Suitable for high-head applications and deep water dredging projects
Applications of Dragflow EL 1204 HH
Bentonite pumping
Civil emergency operations
Dam dredging
Dewatering projects
Offshore platform support
Pumping aggregates in suspension
Sand and gravel extraction
Sewage treatment plants
Slurry pumping in industrial and municipal applications
Steel mill operations
Slurry dredging and slurry with sand concentration projects
Small dredging equipment operations for rivers, lakes, and coastal areas
The Dragflow EL 1204 HH Electric Pump is ideal for slurry dredging applications, efficiently handling slurries with high sand concentration. Its robust construction, high solids handling capacity, and versatility make it perfect for both large-scale and small-scale dredging projects.
