High-Performance Industrial Dredging Machine for Heavy-Duty Applications
The industrial dredging machine plays a crucial role in modern marine, mining, and infrastructure projects where efficient material excavation and slurry handling are required. One of the most advanced solutions in this category is the DRAGFLOW DRH400 self-propelled dredge with steel cables, designed for extreme dredging conditions and continuous heavy-duty operation.
Supplied by Ace Centro Enterprises (ACE), the DRH400 combines powerful hydraulic pumping technology, modular pontoon construction, and steel cable stability to deliver exceptional performance in industrial environments.

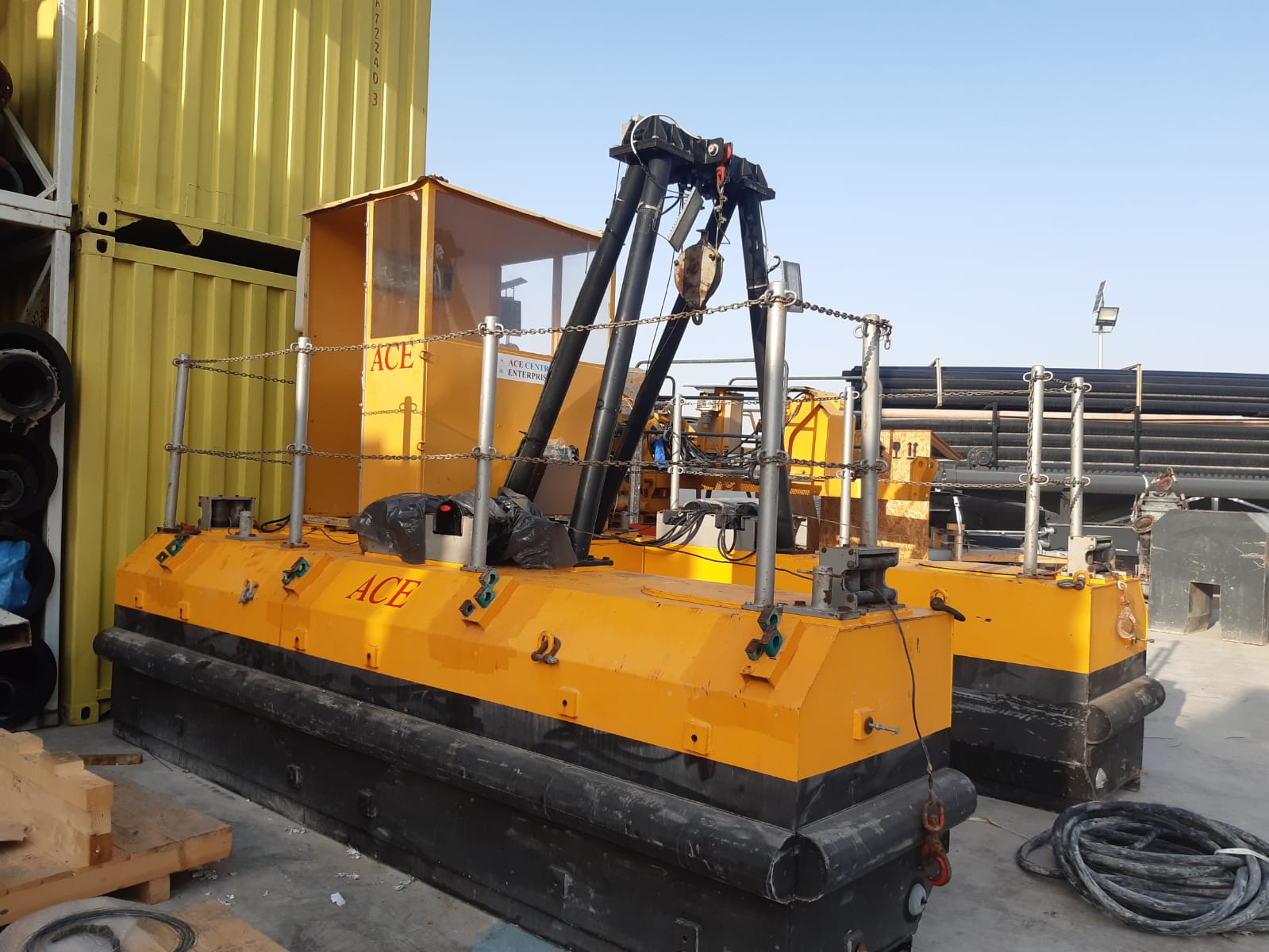

DRH400 Self-Propelled Dredge – Advanced Industrial Dredging Machine
The DRH400 industrial dredging machine is engineered for deep harbor dredging, mining operations, and large-scale sediment removal projects. Its self-propelled steel cable system ensures stability and precision during operations in challenging underwater conditions.
At its core is the powerful DRAGFLOW HY400 hydraulic dredging pump, designed to handle abrasive and high-density slurry with ease.
Key Applications:
Deep harbor dredging and port maintenance
Mining and quarry operations
Industrial sludge and slurry pumping
Sand and sediment removal
Oil and gas dredging projects
Oil spill cleanup operations
Tunneling and bentonite pumping
Sewage and wastewater dredging
Dam and dike construction
River and canal cleaning projects
High-Efficiency Hydraulic System for Industrial Dredging Machine
The DRH400 is powered by an advanced hydraulic dredging system designed for maximum performance in harsh industrial environments.
Pump Features:
High-efficiency agitator for solid material handling
Handles slurry with specific gravity up to 1.7
Efficient transport of mud, sand, silt, gravel, and sludge
Low-speed operation reduces wear and increases lifespan
High flow capacity up to 4000 m³/hr
Long-distance pumping up to 1500 m (extendable with booster pumps)
This makes it one of the most powerful industrial dredging machines available today.
Steel Cable Self-Propelled System for Stability
The self-propelled dredge with steel cables design enhances stability and control during deep-water industrial operations. This ensures precise dredging even in complex underwater environments.
Advantages:
Strong stability in deep water conditions
Accurate dredging control and positioning
Reduced vibration during continuous operation
Suitable for offshore and industrial applications
Enhanced structural strength for heavy-duty use
Durable Engineering and Construction Quality
The DRH400 industrial dredging machine is built using premium materials and precision engineering for long-term reliability.
Key Features:
High chrome alloy wear parts for durability
Precision-machined components for efficiency
Grease injection system for sealing protection
Low wear design for continuous operation
Modular pontoon structure for flexibility
These features ensure maximum productivity and reduced maintenance requirements.
Safety and Protection Systems
To ensure reliable operation in extreme environments, the DRH400 includes advanced monitoring systems.
Built-in Protection Features:
Motor temperature sensor for overheating protection
Moisture sensor in oil chamber for leak detection
Lip seal system with front deflector design
Teflon-coated sealing layers for chemical resistance
Advanced sealing system to prevent fine particle intrusion
Technical Specifications of DRAGFLOW DRH400
The industrial dredging machine DRH400 delivers high-performance capabilities for large-scale projects.
Specifications:
Solids handling size: 20 mm to 120 mm (5 inch)
Flow rate: up to 4000 m³/hr
Pumping distance: up to 1500 m (longer with booster pumps)
Maximum dredging depth: up to 300 m
Electric pump versions: 50 Hz and 60 Hz available
Manufacturing Quality:
100% Italian-made pump castings
High-grade metallurgy for long service life
Designed for continuous heavy-duty industrial operation
Global Applications of Industrial Dredging Machines
The DRH400 is widely used across multiple industries due to its versatility and performance.
Marine & Offshore Sector
Harbor dredging
Port maintenance
Offshore platform dredging
Mining & Industrial Sector
Tailings removal
Slurry transport
Quarry operations
Environmental & Infrastructure Projects
River and lake cleaning
Canal restoration
Dam construction
Pollution control systems
Why Choose DRH400 Industrial Dredging Machine?
The DRH400 stands out as a powerful and reliable solution for modern dredging challenges.
Key Advantages:
High-performance hydraulic dredging system
Excellent handling of abrasive materials
Strong steel cable self-propelled stability
Long operational life with reduced maintenance
Suitable for extreme industrial environments
Proven global performance across industries
Industrial Dredging Machine DRH400 Self-Propelled Dredge with Steel Cables by Dragflow
