Advanced Solution for Efficient Mine Tailings Management
Mining operations generate large volumes of tailings that require efficient dredging and transport systems. The DRH400 Self-Propelled Dredge with Steel Cables from Ace Centro Enterprises (ACE)
is a high-performance mine tailing dredging equipment designed to handle dense slurry, abrasive materials, and continuous heavy-duty operations in mining environments.
Powered by the advanced DRAGFLOW HY400 hydraulic dredging pump, the DRH400 ensures reliable and efficient tailings removal, slurry pumping, and sediment management for large-scale mining projects.

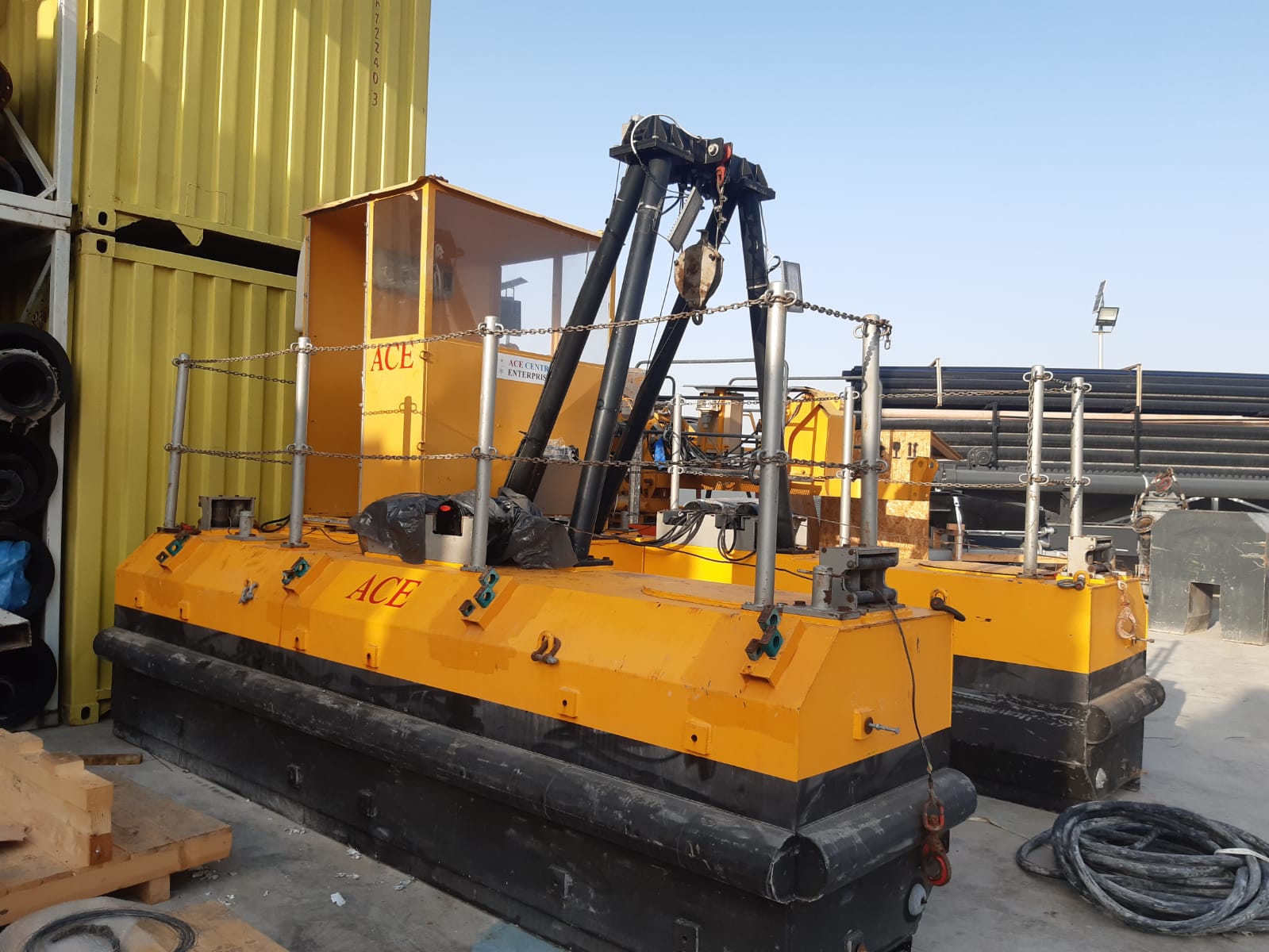

DRH400 Self-Propelled Dredge With Steel Cables
The DRH400 combines modular pontoon construction, steel cable support, and advanced hydraulic dredging technology to deliver maximum efficiency in mine tailings operations.
Key Mining Applications
Mine tailings removal and transport
Tailings pond dredging and maintenance
Mining slurry pumping
Quarry waste handling
Sediment removal in processing ponds
Heavy industrial slurry transfer
Bentonite and drilling mud pumping
Environmental remediation projects
Dam and containment pond dredging
Water treatment and sludge management
Its self-propelled design ensures smooth movement and precise positioning in large mining tailings facilities.

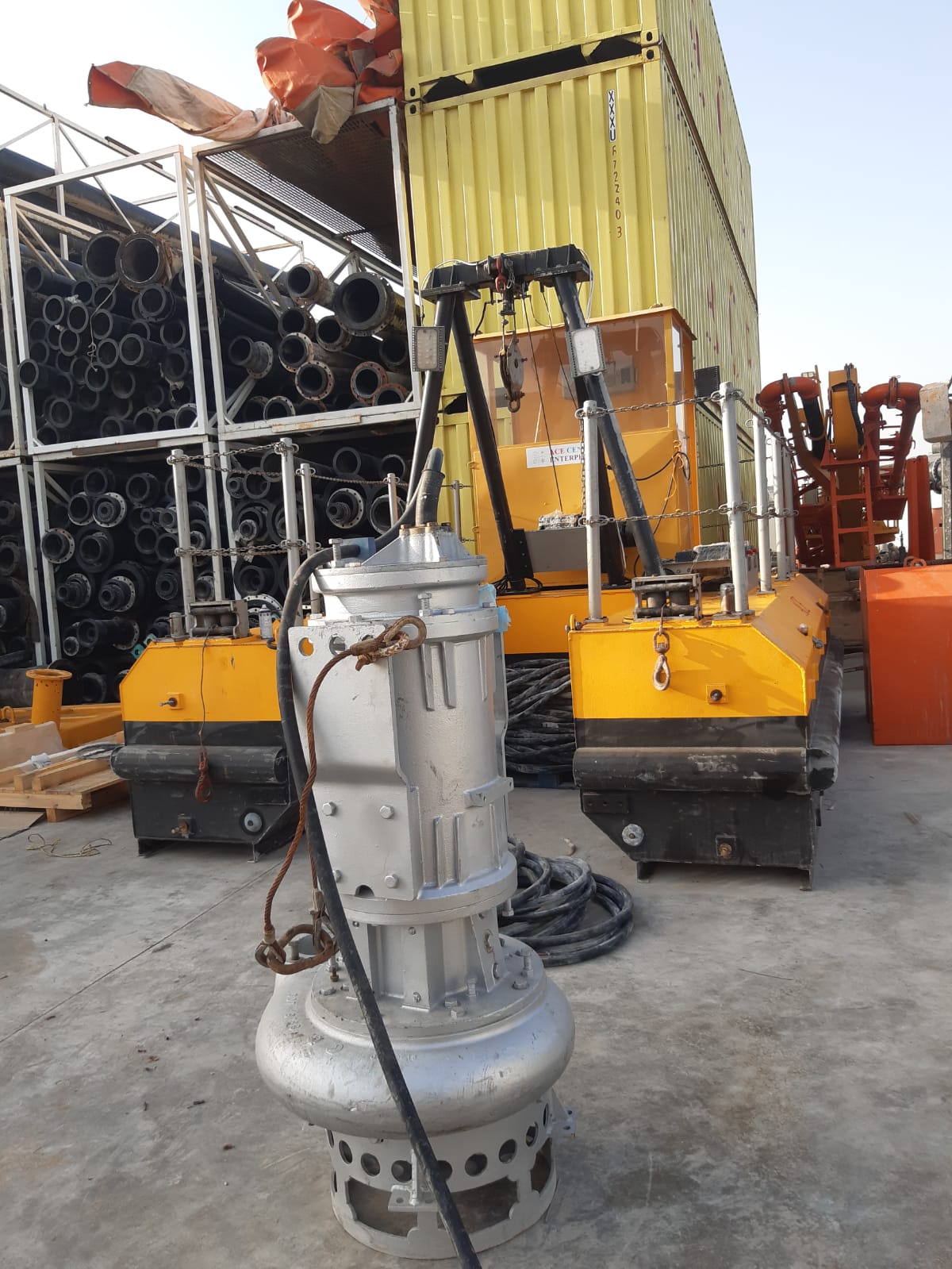

Powerful DRAGFLOW HY400 Hydraulic Dredging Pump
The DRAGFLOW HY400 hydraulic dredging pump is engineered for high-capacity slurry handling in demanding mining environments.
Pump Performance Features
Handles slurry mixtures up to 1.7 specific gravity
Efficient pumping of mud, silt, sand, and gravel
Solids handling capacity from 20 mm to 120 mm
Flow rates up to 4000 m³/hr
Pumping distances up to 1500 meters
Extended range using booster pump systems
Dredging depth capability up to 300 meters
The advanced agitator ensures continuous suspension of solids, reducing sediment buildup and maintaining consistent flow during tailings removal operations.
Built for Harsh Mining Environments
The DRH400 is designed to operate in highly abrasive and corrosive conditions commonly found in mining tailings operations.
Key Durability Features
High Chrome Alloy wear components for maximum abrasion resistance
Low-speed operation reduces wear and extends service life
Precision-machined parts for improved reliability
Advanced lip seal system with front deflector protection
Teflon sealing layers resistant to high and low pH slurry
Optional temperature and moisture monitoring sensors
Grease injection points for extended sealing system life
All pump castings are manufactured in Italy using premium metallurgy to ensure long-term durability and performance.
Flexible Modular System for Mining Projects
The modular pontoon design of the DRH400 allows fast assembly, easy transport, and flexible deployment across mining sites and tailings ponds.
Through its strong regional presence, Ace Centro Enterprises (ACE)
supplies advanced dredging systems across the Middle East, Africa, and global mining markets.
ACE also provides telescopic and ladder dredge pump configurations for:
Large-scale mining operations
Tailings management facilities
Industrial dredging applications
Environmental cleanup projects
Slurry transport systems
Why Choose the DRH400 for Mine Tailings Dredging?
The DRH400 is a trusted mine tailing dredging equipment because it offers:
High-capacity slurry pumping performance
Superior abrasion resistance
Continuous heavy-duty operation
Deep dredging capability
Reliable steel cable system
Reduced maintenance requirements
Efficient hydraulic pumping technology
Its robust design ensures safe, efficient, and cost-effective tailings management.
Mine Tailing Dredging Equipment DRH400 Self-Propelled Dredge With Steel Cables
