Innovative Dredging Solutions for Compact Sediment Removal
The Dragflow Compact Sediment Dredging Technology is engineered to deliver superior performance in challenging dredging environments where compact sediment, dry clay, and abrasive solids are difficult to handle. Using the advanced Dragflow Water Jet Ring system, operators can efficiently loosen dense materials and create slurry directly at the pump intake for smoother and more effective dredging operations.
This cutting-edge technology improves productivity while reducing wear on dredging pump components, making it ideal for industrial, mining, and marine applications.
How the Dragflow Water Jet Ring Works

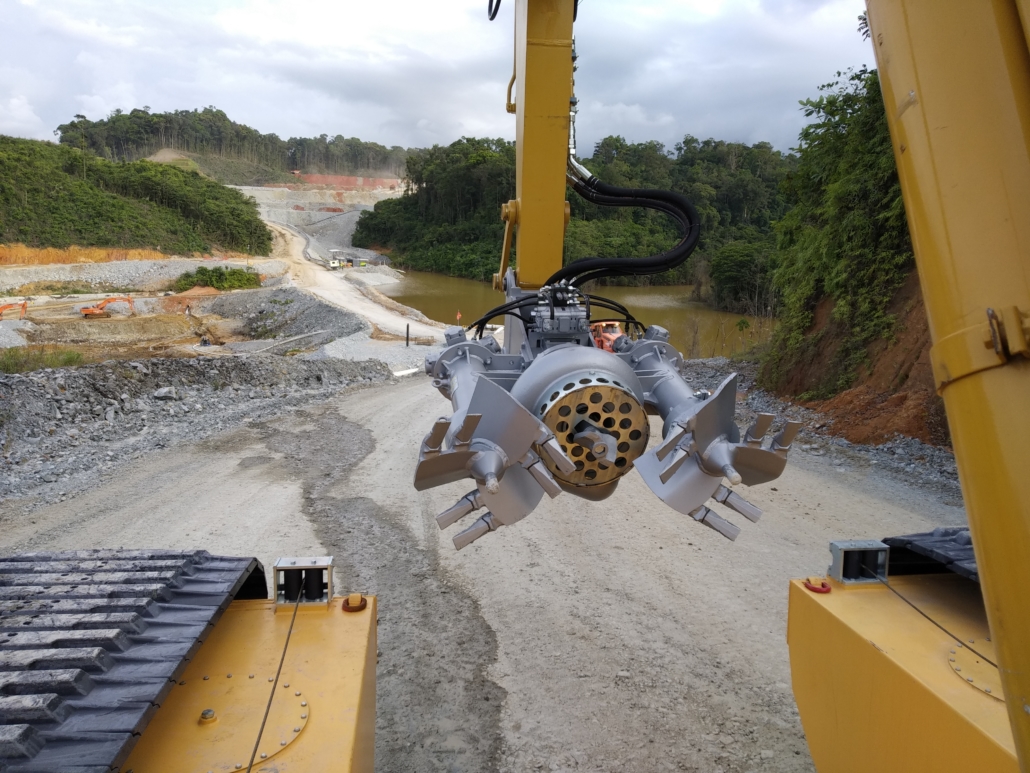

The Dragflow Water Jet Ring system is designed with high-pressure water nozzles mounted around the dredging pump intake. These nozzles break apart compact sediment before it enters the pump, creating a fluid slurry mixture that can be transported more efficiently.
Key Functions
Loosens compact and dry clay material
Generates slurry in front of the pump suction area
Reduces abrasive wear on pump components
Improves solids transport efficiency
Enhances overall dredging performance
By reducing direct contact between abrasive materials and internal pump parts, the system helps extend equipment lifespan and minimize maintenance requirements.
Why Choose Dragflow for Compact Sediment Dredging?
With over 25 years of expertise, Dragflow is recognized globally for delivering reliable heavy-duty submersible dredging pumps and complete dredging systems.
Manufactured in Verona, Italy, Dragflow equipment is specifically engineered for severe operating conditions and high-density slurry applications.
Industries Served
Marine dredging
Sand and aggregate mining
Industrial slurry pumping
Environmental remediation
Harbor maintenance
Dam and reservoir cleaning
Over the years, Dragflow pumps and dredgers have been successfully supplied worldwide for deep-sea harbor dredging, beach reclamation, river cleaning, and mining operations.
Benefits of Compact Sediment Dredging Technology
Enhanced Slurry Production
The high-pressure water jet system creates a more consistent slurry mixture, improving pumping performance and material handling efficiency.
Reduced Pump Wear
The slurry formation process decreases abrasion on critical pump components, reducing downtime and maintenance costs.
Custom Designed Jet Ring Nozzles
Each Water Jet Ring nozzle configuration is custom designed to suit the specific application and material conditions, ensuring optimal dredging efficiency.
Reliable Heavy-Duty Operation
Dragflow systems are built for continuous operation in demanding environments involving compact sediment and abrasive solids.
Technical Specifications
Specification Description
Technology High Pressure Water Jet Ring
Main Application Compact sediment dredging
Material Type Dry clay, dense sediment, abrasive solids
Function Slurry creation and sediment loosening
Nozzle Design Customized for operational requirements
Applications of Dragflow Water Jet Ring Systems
The compact sediment dredging technology from Dragflow is suitable for a wide range of projects, including:
Harbor and port dredging
Mining and excavation operations
River and canal maintenance
Industrial lagoon cleaning
Reservoir and dam dredging
Beach nourishment projects
Compact Sediment Dredging Technology with Advanced Dragflow Water Jet Ring Systems
