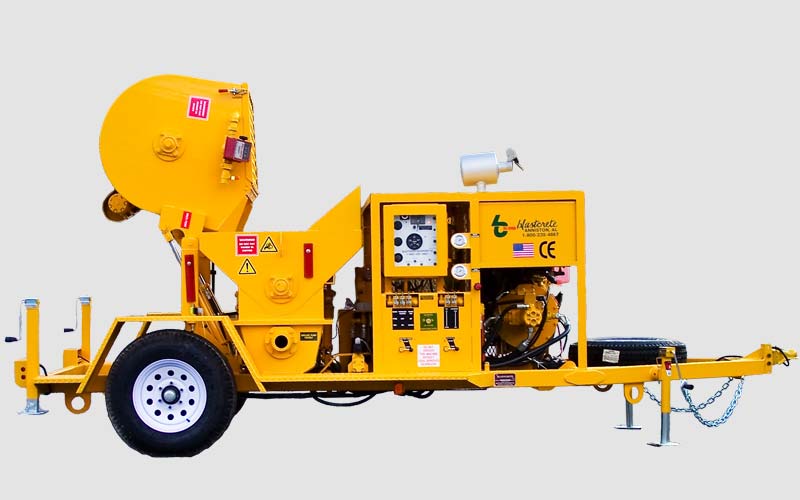

For industrial refractory contractors, selecting reliable equipment is critical to achieving efficient and consistent project results. If you're searching for an MX-10 refractory pump for sale, the MX-10 Mixer/Pump offers the performance, durability, and productivity required for demanding refractory shotcrete and pump cast applications. Built by a trusted refractory pump manufacturer, the MX-10 has been the industry standard for monolithic refractory installations since 1996.
Designed with an ultra-high-pressure pumping system and a high-capacity hydraulic pan mixer, the MX-10 delivers exceptional performance on projects that require dependable material handling and long-distance pumping.
A Proven Refractory Pump for Industrial Applications
The MX-10 is engineered specifically for pumping dense refractory materials used in steel mills, cement plants, power generation facilities, petrochemical plants, foundries, and other high-temperature industrial environments.
Its advanced 3-inch swing tube pumping system is capable of delivering up to 10 tons of material per hour, making it an ideal solution for large-scale refractory installations where productivity and reliability are essential.
Why Choose the MX-10 Refractory Pump?
Contractors looking for an MX-10 refractory pump for sale benefit from equipment designed to handle the toughest pumping conditions while minimizing downtime.
Key advantages include:
Pumps dense refractory materials more than 300 feet vertically
Delivers up to 2200 PSI pumping pressure
High-capacity 2200 lb. hydraulic pan mixer
Fast 1.5–2 minute mixing cycles
Heavy-duty swing tube pumping system
Easy-access swing-out receiving hopper
Designed for continuous industrial operation
These features help improve job site efficiency while maintaining consistent material quality throughout every pumping cycle.
Manufactured for Performance and Reliability
As a leading refractory pump manufacturer, the MX-10 is built with durability and long-term performance in mind. Every major component is engineered to withstand abrasive refractory materials and demanding operating conditions.
The machine combines powerful hydraulic mixing with high-pressure pumping to ensure reliable material placement for both shotcrete and pump cast applications.
Advanced Hydraulic Mixing System
The MX-10 features a 2200 lb. capacity hydraulic pan mixer equipped with a high-torque drive that produces uniform refractory mixes in approximately 1.5 to 2 minutes.
Mixer Benefits
High-torque hydraulic mixing
2200 lb. batch capacity
Fast production cycles
Consistent material quality
Reduced labor requirements
Improved pumping efficiency
This efficient mixing system helps contractors maintain continuous production while reducing material waste.
Ultra High-Pressure Pumping Technology
The MX-10 incorporates a rugged 3-inch × 24-inch ultra-high-pressure swing tube pump capable of generating 2200 PSI piston face pressure.
Pump Features
Ultra-high-pressure swing tube design
Reliable material delivery
Long-distance vertical pumping
Continuous heavy-duty operation
Smooth flow of dense refractory materials
This advanced pumping technology allows contractors to complete challenging installations with confidence.
Easy Maintenance for Maximum Uptime
Routine servicing is simplified through the MX-10's practical design. The swing-out receiving hopper provides direct access to the lower hopper and swing tube assembly, reducing cleaning and maintenance time.
Additional productivity features include:
Hydraulic agitator
2,500 lb. receiving hopper
Forklift tubing for flat-pack removal
Fill Rite water meter
20-gallon dousing bucket
Reliable solid-state electronics
CE Certification
These features help maximize equipment availability and minimize downtime between jobs.
Flexible Power Options
The MX-10 is available with multiple power configurations to match different project requirements:
John Deere 4045T 99 HP water-cooled diesel engine
Deutz BF4M 2012 102 HP water-cooled diesel engine
Dual 40 HP electric motors
These options provide flexibility for both indoor and outdoor refractory applications.
Optional Equipment
The MX-10 can be customized with optional accessories to improve convenience and performance:
2,000 PSI hydraulic pressure washer
Vogel automatic lubrication system
Wireless or pendant remote control
Spare tire
Skid-mounted configuration with forklift tubing
These options allow contractors to configure the machine for their specific operational needs.
MX-10 Technical Specifications
Specification Details
Pump 3" × 24" Ultra High Pressure Swing Tube
Pump Pressure 2200 PSI
Mixer 2200 lb. Capacity Hydraulic Pan Mixer
Output 0–12 Cubic Yards Per Hour
Discharge 3 inches
Hopper 2,500 lb. Swing-Out Receiving Hopper with Hydraulic Agitator
Operating Platform 22 sq. ft.
Trailer Dual 6,000 lb. Capacity Axles with Electric Brakes and Lights
Dimensions 204" × 88" × 117"
Weight 9,000 lbs.
Why Contractors Trust the MX-10
Professionals across the refractory industry choose the MX-10 because it combines powerful performance with dependable engineering.
Key Benefits
Industry-proven design since 1996
High-capacity hydraulic mixing
2200 PSI ultra-high-pressure pumping
Efficient maintenance access
Heavy-duty industrial construction
Multiple engine options
Excellent return on investment
Worldwide customer support
MX-10 Refractory Pump for Sale: A High-Performance Solution from a Trusted Refractory Pump Manufacturer
