Modern construction, mining, and industrial repair projects require reliable equipment that can deliver accurate material placement, reduce downtime, and improve overall productivity. A Predampening system combined with a high-performance Dry process shotcrete machine provides an effective solution for concrete repair, refractory installation, tunneling, and structural reinforcement applications.
The Blastcrete Dampcon Rig is an advanced predampening and gunning system designed to prepare and install dry process shotcrete materials with precision. This complete system integrates mixing, material handling, and gunite technology to deliver consistent performance in demanding job site conditions.
What Is a Predampening System?
A Predampening system is designed to add controlled moisture to dry shotcrete materials before they enter the spraying process. This improves material handling, reduces dust generation, enhances adhesion, and helps achieve better application quality.
The Blastcrete Dampcon Rig provides an efficient predampening solution by combining a high-capacity paddle mixer, material elevator, and rotary gunite machine into one complete unit.
This system is ideal for contractors who need reliable performance for:
Concrete restoration
Refractory gunning
Tunnel construction
Mining applications
Industrial maintenance
Structural repair projects
Advanced Dry Process Shotcrete Machine Technology
A Dry process shotcrete machine is widely used for applying concrete mixtures through pneumatic spraying methods. Unlike traditional concrete placement methods, dry process shotcrete allows materials to be conveyed in a dry state and mixed with water during application.
The Blastcrete Dampcon Rig enhances dry process shotcrete operations by providing controlled predampening before material reaches the gunite machine. This helps improve consistency, reduce rebound, and achieve a stronger final application.

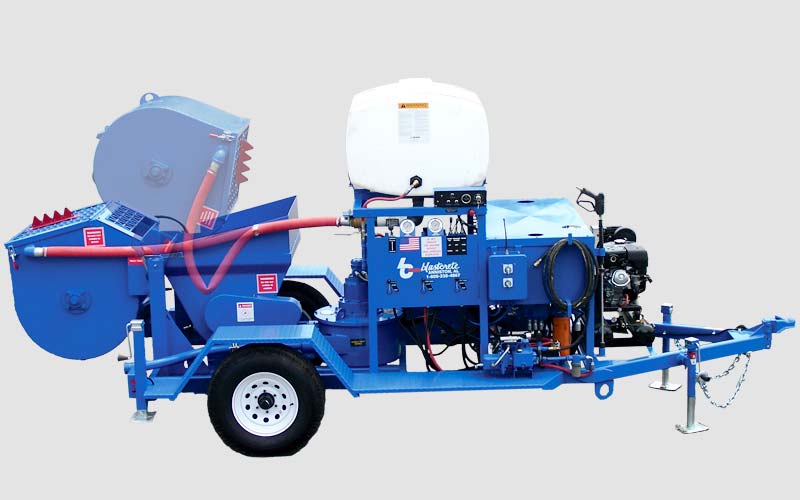

Blastcrete Dampcon Rig Overview
The Dampcon Rig is a complete predampening and gunning system engineered for easy operation, quick cleaning, and minimal maintenance.
The unit includes:
9 cubic foot capacity paddle-style mixer
Rubber wipers for improved mixing performance
Swing-out mixer design for easy cleaning
Material elevator system
Blastcrete 020 "Piccola" rotary gunite machine
Single bolt clamping system for simple maintenance
This combination makes the Dampcon Rig a dependable choice for professionals requiring accurate and efficient shotcrete installation.
Key Features of the Dampcon Rig
High-Performance Paddle Mixer
The 9 cubic foot paddle mixer provides efficient material blending and consistent preparation of dry shotcrete materials. Rubber wipers help minimize material buildup and improve cleaning efficiency.
Easy Maintenance Design
The swing-out mixer allows operators to access the mixing area quickly, reducing maintenance time and improving job site productivity.
Variable Speed Operation
The mixer, conveyor, and gunite machine feature variable speed control, allowing operators to adjust equipment performance based on material type and application requirements.
Reliable Gunite Application
The integrated Blastcrete 020 rotary gunite machine provides dependable shotcrete performance with an output capacity of 0–6 cubic yards per hour.
Applications of Dry Process Shotcrete Machine
The Dry process shotcrete machine technology used with the Dampcon Rig supports multiple industries:
Concrete Repair and Restoration
The system is suitable for repairing damaged concrete structures, bridges, tunnels, foundations, and infrastructure projects where precise material placement is required.
Refractory Gunning Applications
The Dampcon Rig is designed for accurate refractory installation in high-temperature industries, including:
Steel plants
Cement plants
Furnaces
Industrial processing facilities
Mining and Underground Construction
Dry process shotcrete equipment plays an important role in underground support, rock stabilization, and tunnel lining applications.
Technical Specifications of Blastcrete Dampcon Rig
Dimensions:
Length: 205 inches
Width: 75 inches
Charging height: 51 inches
Weight: 5,500 lbs
Air Requirements:
250 CFM at 80 PSI
Power Options
The Blastcrete Dampcon Rig is available with flexible power configurations:
Kubota V1505 29 HP water-cooled diesel engine
20 HP electric motor with starter and disconnect
These options allow users to select the best power source based on their operating environment.
Mounting Options
To meet different transportation and installation requirements, the Dampcon Rig is available with:
Tandem axle trailer mounting
Skid mounting with forklift pockets
Hydraulic water booster pump option
These configurations provide mobility and flexibility for various project locations.
Benefits of Using a Predampening System
A professional Predampening system offers several advantages:
Improved shotcrete material consistency
Reduced dust during application
Better material adhesion
Lower rebound rates
Increased application efficiency
Improved operator control
Reduced maintenance requirements
Why Choose Blastcrete Dampcon Rig?
The Blastcrete Dampcon Rig combines advanced predampening technology with proven dry process shotcrete machine capabilities. Its durable design, flexible power options, and easy maintenance features make it suitable for contractors and industrial professionals who demand reliable equipment performance.
Whether used for concrete repair, refractory gunning, mining, or infrastructure projects, the Dampcon Rig provides a complete solution for efficient and precise shotcrete installation.
Predampening System and Dry Process Shotcrete Machine: The Complete Solution for Efficient Shotcrete Applications
