Construction, infrastructure, mining, and industrial repair projects often require equipment that can deliver high-quality shotcrete application while maintaining flexibility and mobility. A Portable shotcrete machine and a Trailer mounted shotcrete machine provide contractors with efficient solutions for projects where equipment must be transported easily between different job sites.
The Blastcrete Dampcon Rig is an advanced predampening and gunning system designed to predampen and install dry process shotcrete materials. With its compact design, powerful mixing system, and flexible mounting options, the Dampcon Rig delivers reliable performance for concrete repair, refractory gunning, tunneling, and industrial applications.
What Is a Portable Shotcrete Machine?
A Portable shotcrete machine is designed to provide efficient shotcrete application while allowing easy transportation and operation across multiple locations. Portable shotcrete equipment is especially valuable for contractors working on projects where mobility, quick setup, and reliable performance are essential.
Portable shotcrete machines are commonly used for:
Concrete repair projects
Tunnel construction
Mining applications
Structural rehabilitation
Refractory installation
Infrastructure maintenance
The Blastcrete Dampcon Rig provides the benefits of a portable shotcrete solution by combining mixing, material handling, and gunite spraying capabilities in one integrated unit.
Advantages of a Trailer Mounted Shotcrete Machine
A Trailer mounted shotcrete machine provides enhanced mobility by allowing equipment to be transported easily from one job site to another. This configuration is ideal for contractors who manage multiple projects and require flexible equipment deployment.
Key benefits include:
Easy transportation between locations
Faster job site setup
Reduced installation requirements
Improved project flexibility
Efficient equipment relocation

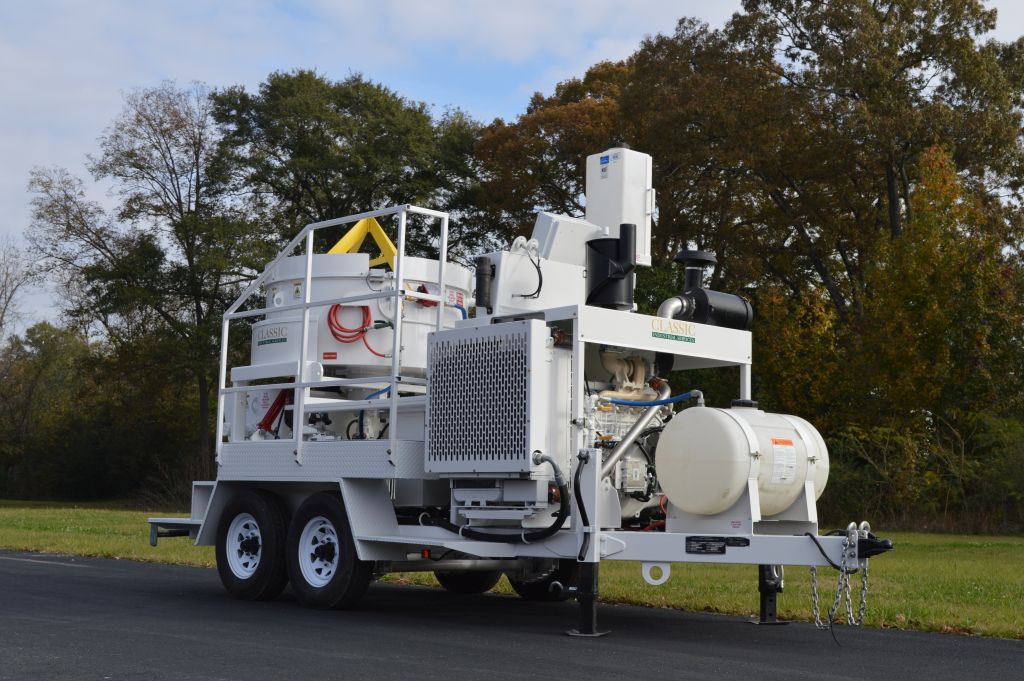

The Dampcon Rig can be configured with a tandem axle trailer mounting option, making it a practical choice for mobile shotcrete operations.
Blastcrete Dampcon Rig Overview
The Blastcrete Dampcon Rig is a complete predampening and gunning system designed for installing dry process shotcrete materials with precision and efficiency.
The unit combines:
A 9 cubic foot capacity paddle-style mixer
Rubber wipers for improved mixing
Swing-out mixer capability for easy cleaning
Material elevator system
Blastcrete 020 "Piccola" rotary gunite machine
Single bolt clamping system
This advanced design allows contractors to perform shotcrete applications with improved consistency, reduced downtime, and simple maintenance.
Key Features of the Dampcon Rig
High-Performance Paddle Mixer
The 9 cubic foot paddle mixer provides consistent preparation of dry shotcrete materials. Rubber wipers help reduce material buildup and improve mixing efficiency.
Easy Cleaning and Maintenance
The swing-out mixer design allows operators to quickly access the mixing area, reducing cleaning time and improving overall productivity.
Variable Speed Controls
The mixer, conveyor, and gunite machine feature variable speed operation, allowing operators to adjust equipment performance based on project requirements.
Reliable Rotary Gunite Technology
The integrated Blastcrete 020 rotary gunite machine delivers dependable material application with an output capacity of 0–6 cubic yards per hour.
Applications of Portable Shotcrete Machine Technology
Concrete Repair and Restoration
The Dampcon Rig is suitable for repairing:
Bridges
Tunnels
Foundations
Industrial structures
Damaged concrete surfaces
Its controlled application process helps achieve strong bonding and durable repairs.
Refractory Gunning Applications
The system supports precise refractory installation in industries such as:
Steel plants
Cement plants
Furnaces
Kilns
High-temperature processing facilities
Mining and Underground Construction
Portable shotcrete equipment is widely used for:
Tunnel reinforcement
Rock stabilization
Underground support systems
Mining construction projects
Technical Specifications of Blastcrete Dampcon Rig
Equipment Dimensions
Length: 205 inches
Width: 75 inches
Charging height: 51 inches
Weight: 5,500 lbs
Air Requirements
250 CFM at 80 PSI
Power Options
The Blastcrete Dampcon Rig offers flexible power configurations:
Kubota V1505 29 HP water-cooled diesel engine
20 HP electric motor with starter and disconnect
These options allow users to select the most suitable power source according to their job site requirements.
Mounting Options
The Dampcon Rig is available with flexible mounting configurations:
Tandem axle trailer mounting
Skid mounting with forklift pockets
Additional options include:
Hydraulic water booster pump
These configurations provide excellent mobility and adaptability for various applications.
Benefits of Using Blastcrete Dampcon Rig
Choosing a Portable shotcrete machine or Trailer mounted shotcrete machine provides several advantages:
Easy transportation between job sites
Faster setup and operation
Improved shotcrete application efficiency
Reduced maintenance requirements
Consistent material quality
Flexible operating configurations
Reliable performance in demanding environments
Why Choose the Dampcon Rig?
The Blastcrete Dampcon Rig combines advanced predampening technology with proven gunite equipment to create a complete mobile shotcrete solution.
Its durable construction, efficient operation, and flexible mounting options make it ideal for contractors, engineers, and industrial professionals who require dependable equipment for challenging projects.
Whether used for concrete repair, refractory gunning, mining support, or infrastructure construction, the Dampcon Rig provides the mobility, precision, and performance needed for professional shotcrete applications.
A reliable Portable shotcrete machine and Trailer mounted shotcrete machine can significantly improve efficiency and flexibility on demanding job sites. The Blastcrete Dampcon Rig offers a complete solution by combining predampening, mixing, conveying, and gunite spraying technology into one versatile system.
With its advanced features, simple maintenance design, and flexible transportation options, the Dampcon Rig is an excellent choice for professionals seeking reliable shotcrete equipment for mobile construction and industrial applications.
