Modern construction, mining, and industrial projects require reliable shotcrete equipment that delivers consistent material placement, efficient operation, and long-term durability. The Blastcrete Dampcon Rig is an advanced dry mix shotcrete machine designed to predampen and install dry-process shotcrete materials with precision. Built for contractors handling demanding applications, the Dampcon Rig provides an efficient solution for concrete repair, refractory gunning, tunnel construction, and structural rehabilitation.
What Is the Blastcrete Dampcon Rig?

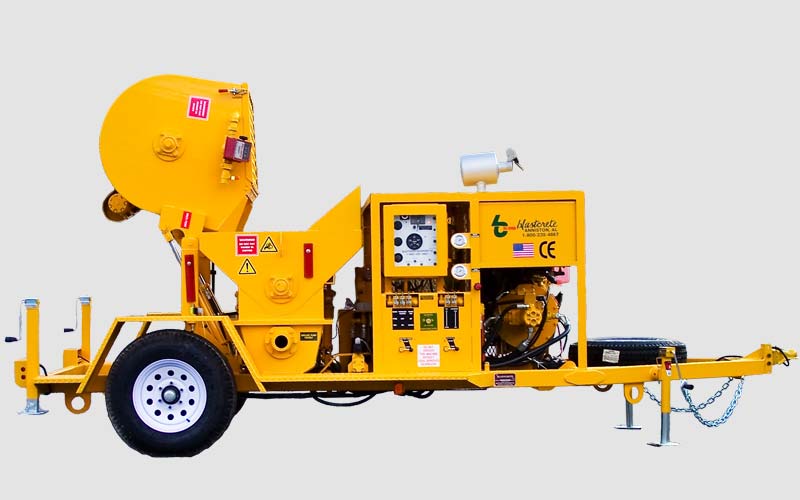

The Blastcrete Dampcon Rig is a complete predampening and gunning system engineered to improve the installation of dry-process shotcrete materials. The unit combines a high-capacity paddle mixer, material elevator, and the proven Blastcrete 020 "Piccola" rotary gunite machine into one efficient package.
Designed for simple operation, easy cleanup, and minimal maintenance, the Dampcon Rig helps contractors achieve consistent shotcrete application while reducing downtime on the job site.
High-Performance Dry Mix Shotcrete Machine
A dependable dry mix shotcrete machine is essential for applications where accurate material placement and consistent output are required. The Blastcrete Dampcon Rig provides excellent control over the shotcrete process by integrating mixing, conveying, and gunning operations.
The system is ideal for:
Concrete repair and restoration
Refractory gunning installations
Tunnel construction and rehabilitation
Mining and underground support
Rock stabilization
Bridge and infrastructure repairs
Industrial maintenance projects
Its dry-process technology allows operators to apply materials efficiently while maintaining excellent control over placement and finish quality.
Advanced Features of the Blastcrete Dampcon Rig
The Dampcon Rig includes several features designed to maximize productivity and simplify operation:
9 Cubic Foot Paddle Mixer
The high-capacity paddle mixer includes durable rubber wipers to provide consistent material mixing and reliable performance during continuous operation.
Swing-Out Mixer Design
The swing-out mixer allows for easier cleaning and maintenance, helping reduce downtime between applications.
Variable Speed Controls
Adjustable speed controls for the mixer, conveyor, and gunite machine provide greater control over material flow and application requirements.
Blastcrete 020 Rotary Gunite Machine
The integrated Blastcrete 020 "Piccola" rotary gunite machine features a single-bolt clamping system and delivers dependable performance for professional shotcrete applications.
Production Capacity
The Dampcon Rig offers a production range of 0 to 6 cubic yards per hour, making it suitable for both repair projects and larger industrial applications.
Technical Specifications
The Blastcrete Dampcon Rig is engineered for demanding job site conditions:
Length: 205 inches
Width: 75 inches
Charging Height: 51 inches
Weight: 5,500 lbs
Air Requirements: 250 CFM at 80 PSI
Its compact design allows for easier transportation and setup while maintaining strong production capability.
Flexible Power Options
The Blastcrete Dampcon Rig is available with multiple power configurations to meet different project requirements:
Kubota V1505 29 HP water-cooled diesel engine
20 HP electric motor with starter and disconnect
These options provide flexibility for outdoor construction sites, industrial facilities, and specialized applications.
Mounting Options for Maximum Flexibility
To support different job site conditions, the Dampcon Rig is available with:
Dual axle trailer configuration for convenient transportation
Skid mount with forklift pockets for easy handling and relocation
An optional hydraulic water booster pump is also available for applications requiring additional water pressure support.
Applications of the Blastcrete Dampcon Rig
The Blastcrete Dampcon Rig is a versatile solution for many industries, including:
Concrete Repair
Structural concrete restoration
Bridge repairs
Highway maintenance
Commercial and industrial repairs
Refractory Applications
Furnace lining repairs
Kiln maintenance
Heat-resistant material installation
Industrial refractory restoration
Underground Construction
Tunnel lining
Mining support
Rock stabilization
Underground rehabilitation
Its combination of portability, performance, and reliability makes it an excellent choice for contractors requiring a dependable dry-process shotcrete system.
Benefits of Choosing the Blastcrete Dampcon Rig
The Blastcrete Dampcon Rig helps contractors improve productivity through:
Consistent dry mix shotcrete application
Efficient material handling
Reduced cleanup time
Simple maintenance procedures
Durable construction for demanding environments
Flexible power and mounting configurations
Reliable performance across multiple applications
By combining proven shotcrete technology with practical design features, the Dampcon Rig provides a complete solution for professional shotcrete installation.
Blastcrete Dampcon Rig: Advanced Dry Mix Shotcrete Machine for Concrete Repair and Refractory Applications
