Modern construction and industrial projects require dependable pumping equipment that can deliver consistent material flow, high productivity, and reliable performance. A powerful Concrete Mixer Pump and Industrial Mixer Pump system helps contractors handle demanding applications by combining material mixing and pumping operations into one efficient machine.

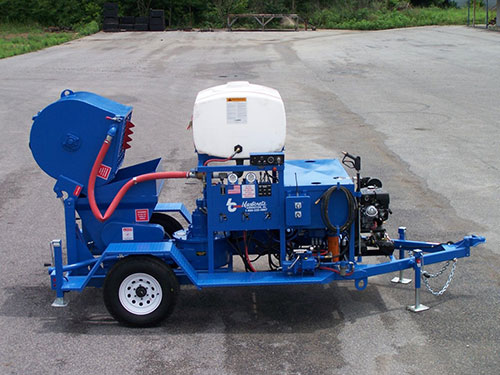

The HBS-1500 Ball Seat Pump from Blastcrete is an advanced mixer and pump system designed for professional contractors who require long-distance pumping capability, reduced maintenance, and versatile material handling. Originally developed for gypsum flooring materials, the HBS-1500 can also pump concrete mixes with aggregate up to 1/2 inch, making it a flexible solution for various construction applications.
Advanced Concrete Mixer Pump Technology
The HBS-1500 Ball Seat Pump combines a high-performance hydraulic pumping system with an integrated mixer to provide efficient material preparation and placement.
The machine features a 4-inch hydraulic ball seat pump capable of producing up to 1000 PSI line pressure, allowing contractors to consistently pump gypsum materials over distances exceeding 600 feet at approximately 130 bags per hour.
The ball seat pump design helps reduce maintenance costs compared with traditional pumping systems by minimizing wear and improving operational efficiency.
Industrial Mixer Pump for Demanding Construction Projects
An effective Industrial Mixer Pump must provide reliable operation in challenging environments. The HBS-1500 is engineered for contractors who need consistent performance for large-scale flooring, concrete, and industrial applications.
The system is suitable for:
Commercial concrete placement
Industrial flooring projects
Gypsum flooring installation
Concrete repair applications
Lightweight concrete pumping
Construction material delivery
With an output capacity of 0 to 15 cubic yards per hour, the HBS-1500 provides the production capability required for professional construction projects.
Integrated Mixing and Pumping Performance
The Blastcrete HBS-1500 combines mixing and pumping functions into one complete unit, improving workflow and reducing equipment requirements.
The system includes:
12 cubic foot hydraulic spiral mixer
30-second mixing cycle
Hydraulic mixer dump system
26 cubic foot receiving hopper
Hydraulic conveying agitator
The receiving hopper and pump manifold can be unclamped from the pumping tubes, allowing easy cleaning of the ball-seat manifold and material pumping lines.
Key Features of the HBS-1500 Ball Seat Pump
4-Inch Hydraulic Ball Seat Pump
The powerful hydraulic pump provides up to 1000 PSI pressure capability, supporting long-distance pumping and consistent material delivery.
Hydraulic Spiral Mixer
The 12 cubic foot hydraulic spiral mixer provides efficient material blending and fast mixing performance for improved productivity.
Large Receiving Hopper
The 26 cubic foot receiving hopper with hydraulic agitator ensures smooth material flow and reduces interruptions during pumping operations.
Heavy-Duty Trailer System
The dual axle trailer with two braking axles provides excellent stability and easy transportation between job sites.
Durable Industrial Construction
The heavy-duty tubular frame is designed for continuous professional use in demanding construction environments.
Reduced Maintenance Requirements
The ball seat pump design uses low-cost wear parts, helping contractors reduce operating expenses and improve equipment availability.
Technical Specifications
The Blastcrete HBS-1500 is designed for professional construction and industrial applications:
Length: 234 inches
Width: 92 inches
Height (Water Tank): 93 inches
Height (Mixer Dump Position): 95 inches
Mixer Charging Height: 57 inches
Weight: 8,350 lbs
Output: 0–15 cubic yards per hour
Mixer Capacity: 12 cubic feet
Receiving Hopper Capacity: 26 cubic feet
Pump Type: 4-inch Hydraulic Ball Seat Pump
Power Options
The HBS-1500 is powered by:
70 HP Kubota water-cooled diesel engine
Additional configurations can be selected to meet different job site requirements.
Available Options
The HBS-1500 can be customized with additional options, including:
2000 PSI hydraulic pressure washer
Spare tire
Electric power option
Skid mount configuration
Custom paint options
These options provide contractors with flexibility for different operating conditions and project requirements.
Applications of the HBS-1500 Industrial Mixer Pump
The HBS-1500 supports a wide range of professional applications.
Concrete Pumping Applications
Concrete placement projects
Repair concrete applications
Specialty concrete installations
Construction material pumping
Flooring Applications
Gypsum floor installation
Self-leveling floor systems
Commercial flooring projects
Industrial flooring applications
Industrial Construction Applications
Large-scale material placement
Infrastructure projects
Maintenance and repair operations
Heavy-duty construction applications
Benefits of the HBS-1500 Ball Seat Pump
The Blastcrete HBS-1500 provides contractors with:
Long-distance pumping capability
High-pressure hydraulic performance
Efficient mixing and pumping
Reduced maintenance costs
Easy cleaning and servicing
Versatile material handling
Durable industrial-grade construction
Designed for professional contractors, the HBS-1500 Ball Seat Pump delivers the reliability, efficiency, and flexibility required for modern concrete and industrial pumping operations.
