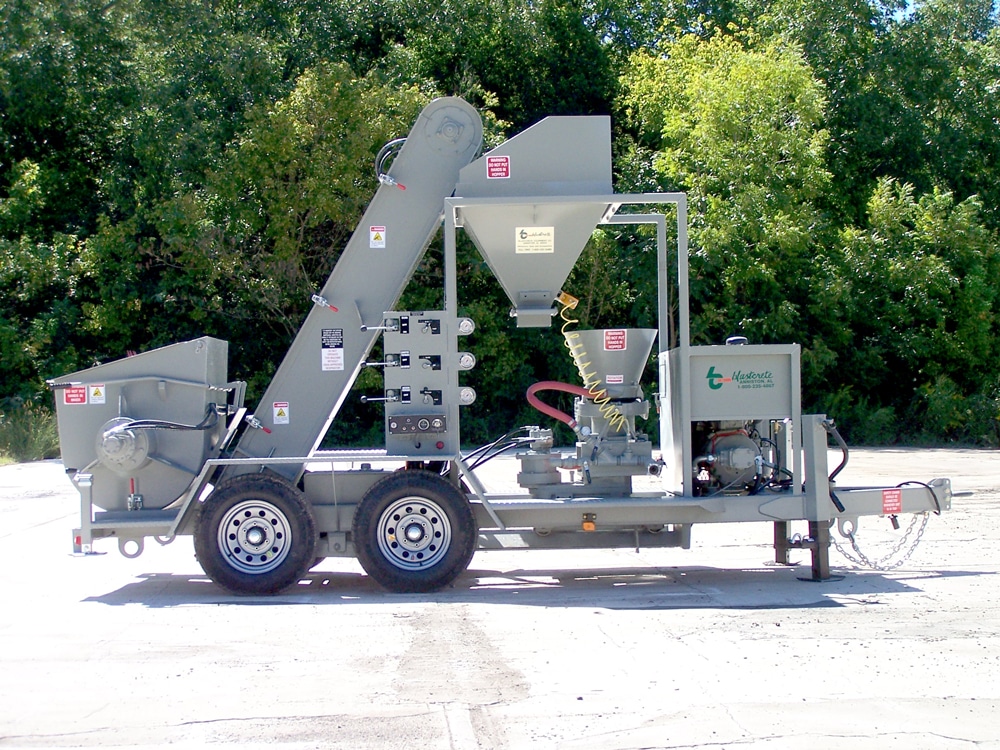

HBS-1500 Ball Seat Pump – Powerful Long Reach Concrete Pump for Professional Applications
The HBS-1500 Ball Seat Pump is a high-performance mixer and pumping system designed for contractors who require dependable high pressure concrete pumping capabilities and long-distance material delivery. Built for demanding construction environments, the HBS-1500 combines advanced hydraulic technology, a powerful mixing system, and durable construction to provide consistent pumping performance.
As an efficient long reach concrete pump, the HBS-1500 is designed to handle gypsum flooring materials and concrete mixes over extended distances while maintaining excellent flow and productivity. Its 4-inch hydraulic ball seat pump delivers up to 1000 PSI line pressure, making it suitable for professional flooring, construction, and concrete placement applications.
Reliable High Pressure Concrete Pumping Equipment
Construction projects often require equipment capable of transporting materials efficiently across challenging distances. The HBS-1500 provides a reliable solution with its powerful hydraulic pump system and large-capacity mixing design.
The machine can consistently pump gypsum materials beyond 600 feet while supporting high production rates. It can also pump concrete mixes with aggregate sizes up to 1/2 inch, providing contractors with a versatile pumping solution.
Applications include:
High pressure concrete pumping projects
Long-distance concrete placement
Gypsum flooring installation
Commercial construction applications
Industrial flooring projects
Concrete repair and restoration
Advanced HBS-1500 Ball Seat Pump Technology
The HBS-1500 features a 4-inch hydraulic ball seat pump designed for durability, efficiency, and reduced maintenance. The ball seat design helps minimize wear while allowing easier cleaning of the pump manifold and pumping tubes.
Key Benefits:
1000 PSI pump pressure capability
Extended pumping distance performance
Lower maintenance requirements
Smooth and consistent material flow
Easy cleaning and service access
Features of HBS-1500 Ball Seat Pump
High-Pressure Hydraulic Pump System
4-inch hydraulic ball seat pump
Designed for demanding pumping applications
Suitable for gypsum and concrete materials
Efficient Mixing Performance
12 cubic foot hydraulic spiral mixer
30-second mixing cycle
Hydraulic dump operation for improved productivity
Large Receiving Hopper System
26 cubic foot receiving hopper capacity
Hydraulic conveying agitator
Quick-release pump manifold for easier cleaning
Heavy-Duty Construction Design
Dual axle trailer with two braking axles
Heavy-duty tubular frame
Four manual leveling jacks for jobsite stability
HBS-1500 Specifications
Specification Details
Length 234 inches
Width 92 inches
Height (Water Tank) 93 inches
Height (Mixer Dump Position) 95 inches
Mixer Charging Height 57 inches
Weight 8,350 lbs.
Output Capacity 0–15 cubic yards per hour
Mixer Capacity 12 cubic feet
Receiving Hopper Capacity 26 cubic feet
Pump Type 4-inch Hydraulic Ball Seat Pump
Power Options
The HBS-1500 operates with:
70 HP Kubota water-cooled diesel engine
Optional configurations include:
Electric power system
Skid mount setup
Custom paint options
Advantages of a Long Reach Concrete Pump
A dependable long reach concrete pump allows contractors to improve efficiency by transporting materials farther with fewer repositioning requirements. The HBS-1500 offers:
Extended pumping distance capability
Strong hydraulic performance
Reduced project downtime
Consistent material placement
Versatile operation for multiple applications
Applications of HBS-1500 Ball Seat Pump
The HBS-1500 is ideal for:
High pressure concrete pumping operations
Long-distance concrete delivery
Gypsum underlayment installation
Flooring contractor projects
Commercial building construction
Industrial concrete applications
Optional Equipment
Available options include:
2000 PSI hydraulic pressure washer
Spare tire package
Electric power configuration
Skid mount option
Custom paint finish
High Pressure Concrete Pumping Solution for Long-Distance Material Placement
