HBS-1500 Ball Seat Pump – Powerful 130 Bags Per Hour Pumping Solution
Construction and flooring professionals require reliable equipment that can deliver consistent output, handle long-distance pumping, and reduce maintenance requirements. The HBS-1500 Ball Seat Pump is designed to provide exceptional pumping performance with advanced hydraulic technology, making it an ideal choice for contractors seeking a powerful 1000 PSI hydraulic pump and efficient material placement system.

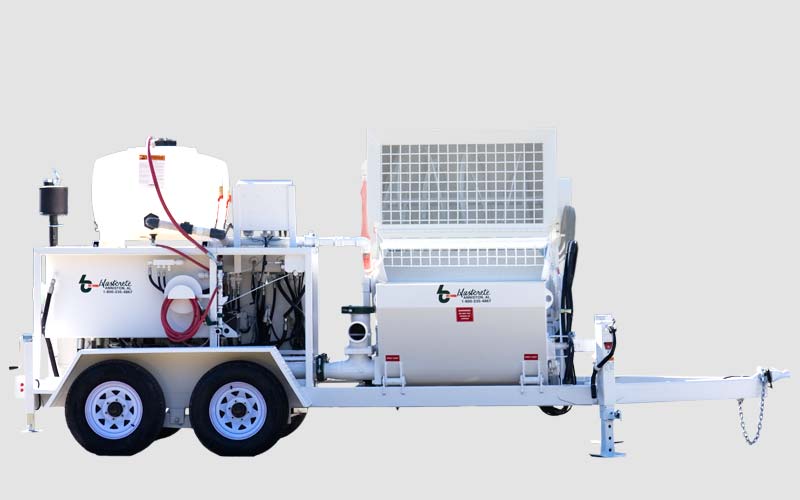

The Blastcrete HBS-1500 is a heavy-duty mixer pump engineered for gypsum flooring applications and concrete pumping needs. With its ability to pump gypsum materials over 600 feet at rates up to 130 bags per hour pump capacity, the HBS-1500 delivers the performance required for demanding commercial and industrial projects.
Advanced HBS-1500 Ball Seat Pump Technology
The HBS-1500 features a 4-inch hydraulic ball seat pump capable of producing up to 1000 PSI line pressure. This powerful pumping system ensures smooth and consistent material flow while maintaining performance across extended pumping distances.
The unique ball seat design helps minimize wear on critical components, reducing maintenance requirements and improving equipment reliability. This makes the HBS-1500 a cost-effective solution for contractors who need dependable pumping equipment.
Key Benefits:
1000 PSI hydraulic pumping capability
Up to 130 bags per hour production rate
Long-distance material pumping performance
Reduced maintenance costs
Easy cleaning and servicing
Versatile gypsum and concrete pumping applications
Designed for Efficient Gypsum and Concrete Pumping
The HBS-1500 combines mixing and pumping functions into one complete system. It includes a 12 cubic foot hydraulic spiral mixer with a 30-second mixing cycle, helping contractors achieve consistent material preparation and improved productivity.
The 26 cubic foot receiving hopper is equipped with a hydraulic agitator that supports continuous material movement and smooth operation. The receiving hopper and pump manifold can be easily disconnected from the pumping tubes, allowing quick cleaning and reducing downtime.
Features of the HBS-1500 Ball Seat Pump
High-Pressure Hydraulic Pump System
The 4-inch hydraulic ball seat pump provides up to 1000 PSI pump pressure capability, allowing contractors to efficiently handle challenging pumping requirements.
High Production Capacity
With output capability of up to 130 bags per hour for gypsum materials, the HBS-1500 helps flooring contractors complete large projects faster while maintaining consistent performance.
Durable Heavy-Duty Construction
Built for professional job sites, the HBS-1500 includes:
Heavy-duty tubular frame
Dual axle trailer with two braking axles
Heavy-duty manual leveling jacks
150-gallon water tank with 2-inch flow meter
Technical Specifications
Specification Details
Pump Type 4-inch Hydraulic Ball Seat Pump
Pump Pressure 1000 PSI
Output Capacity 0–15 cubic yards per hour
Gypsum Pumping Rate Up to 130 bags per hour
Mixer Capacity 12 cubic feet
Receiving Hopper Capacity 26 cubic feet
Length 234 inches
Width 92 inches
Height (Water Tank) 93 inches
Mixer Charging Height 57 inches
Weight 8,350 lbs
Power Options
The HBS-1500 operates with:
70 HP Kubota water-cooled diesel engine
Available options include:
2000 PSI hydraulic pressure washer
Spare tire
Electric power configuration
Skid mount
Custom paint options
Why Choose the HBS-1500 Ball Seat Pump?
Selecting the right pumping equipment can improve productivity, reduce downtime, and increase project efficiency. The HBS-1500 provides contractors with a dependable combination of hydraulic power, durability, and versatility.
Advantages include:
Powerful 1000 PSI hydraulic pump performance
High-volume 130 bags per hour pumping capability
Low-maintenance ball seat pump design
Long-distance pumping ability
Efficient mixing and material handling
Suitable for gypsum flooring and concrete applications
1000 PSI Hydraulic Pump for High-Performance Material Placement Applications
