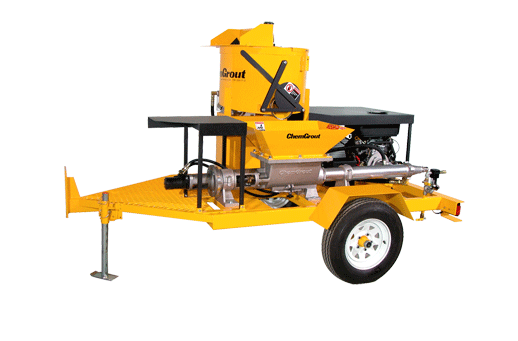

RMX-5000 Shotcrete Mixer Pump for Maximum Productivity
The RMX-5000 Shotcrete Mixer Pump is engineered to deliver outstanding performance for contractors working with shotcrete, refractory materials, stucco, and plaster. Featuring an ultra high-pressure 3-inch swing tube pump and a high-capacity hydraulic mixing system, the RMX-5000 is built to handle demanding construction and industrial applications with efficiency and reliability.
Designed for long-distance pumping and continuous operation, this heavy-duty machine is an excellent choice for tunnel construction, mining, infrastructure, cement plants, steel mills, and industrial furnace maintenance.
Why Choose the RMX-5000 Shotcrete Mixer Pump?
A reliable Shotcrete Mixer Pump must provide consistent material flow, powerful pumping pressure, and dependable mixing performance. The RMX-5000 combines all of these capabilities into one versatile machine, making it suitable for both dense refractory shotcrete and conventional shotcrete applications.
Its rugged construction, easy maintenance, and flexible power options help contractors reduce downtime while increasing productivity on every project.
Key Features of the RMX-5000
Ultra High-Pressure Pumping Performance
The RMX-5000 is equipped with a 3" × 18" ultra high-pressure swing tube pump capable of delivering:
2,200 PSI piston face pressure
Smooth and consistent material delivery
Long-distance pumping for demanding job sites
Reliable performance with dense shotcrete and refractory mixes
High-Capacity Hydraulic Mixing System
The machine is available with two mixer configurations:
Hydraulic Paddle Mixer
1,000 lb. capacity
Planetary gearbox drive
Designed for refractory applications
Hydraulic Spiral Mixer
1,000 lb. capacity
Ideal for conventional shotcrete, plaster, and stucco
Both options ensure uniform material consistency, improving application quality and reducing waste.
Efficient Material Handling
The RMX-5000 includes a 1,200 lb. hydraulic receiving hopper with an integrated agitator that keeps materials flowing smoothly into the pump, helping maintain consistent output.
Additional standard features include:
Hydraulic receiving hopper lift
Easy access to swing tube for maintenance
3-inch heavy-duty side discharge
Fill Rite water meter
Reliable solid-state electronics
CE Certified construction
Technical Specifications
Specification Details
Pump Type 3" × 18" Ultra High Pressure Swing Tube
Pump Pressure 2,200 PSI
Output Capacity 0–5 Cubic Yards Per Hour
Mixer Capacity 1,000 lb
Receiving Hopper 1,200 lb with Hydraulic Agitator
Discharge 3" Side Discharge
Trailer Single 6,000 lb Capacity Axle
Dimensions 165" × 76" × 63"
Weight 5,000 lbs
Power Options
The RMX-5000 Shotcrete Mixer Pump is available with two dependable power systems:
Kubota Diesel Engine
Kubota V3600
66 HP
Water-cooled diesel engine
Excellent for remote and outdoor construction sites
Electric Motor
50 HP Electric Motor
Suitable for indoor industrial projects and facilities with available electrical power
Optional Equipment
Enhance your machine with optional accessories such as:
2,000 PSI Hydraulic Pressure Washer
Vogel Automatic Lubrication System
150-Gallon Water Tank with 2" Flow Meter
Spare Tire
Pendant Remote Control
Wireless Remote Control
Skid-Mounted Frame with Forklift Tubing
Applications
The RMX-5000 Shotcrete Mixer Pump is ideal for a wide range of projects, including:
Shotcrete construction
Refractory installation
Tunnel lining
Mining operations
Bridge and highway repair
Retaining walls
Slope stabilization
Swimming pool construction
Cement plants
Steel mills
Petrochemical facilities
Power plants
Stucco application
Plaster pumping
Industrial furnace maintenance
Benefits of the RMX-5000 Shotcrete Mixer Pump
The RMX-5000 is designed to improve efficiency while delivering reliable performance in challenging environments.
Advantages
Ultra high-pressure pumping up to 2,200 PSI
Long-distance shotcrete and refractory material pumping
Large 1,000 lb hydraulic mixing capacity
Heavy-duty 3-inch swing tube pumping system
Easy maintenance with hydraulic hopper lift
Multiple power options for different job sites
CE Certified for quality and safety
Built for continuous industrial use
Improve Productivity with the RMX-5000
Whether your project involves shotcrete, refractory linings, stucco, or plaster, the RMX-5000 Shotcrete Mixer Pump provides the power, durability, and efficiency needed to complete demanding jobs with confidence. Its advanced pumping technology, high-capacity mixing system, and rugged construction make it a valuable asset for contractors and industrial operators worldwide.
Shotcrete Mixer Pump RMX-5000 High-Performance Solution for Refractory & Concrete Applications
