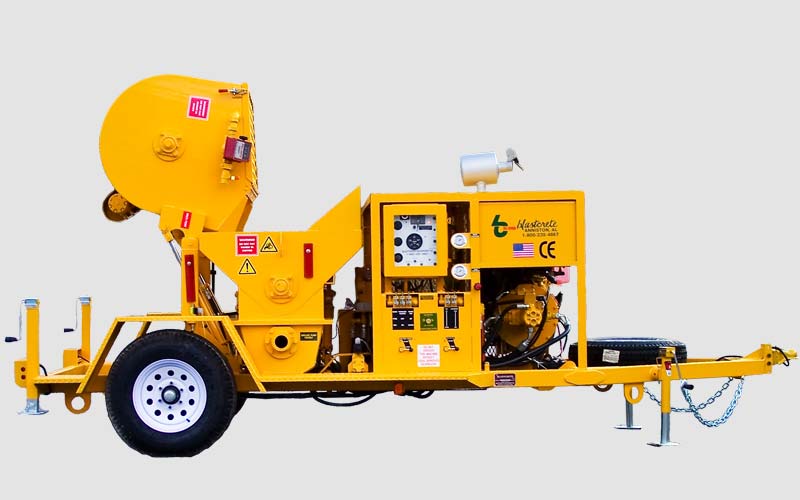

RMX-5000 Concrete Mixer Pump for Heavy-Duty Pumping Applications
The RMX-5000 Concrete Mixer Pump is designed to deliver reliable mixing and high-pressure pumping for demanding construction and industrial projects. Combining an ultra high-pressure 3-inch swing tube pump with a robust hydraulic mixing system, the RMX-5000 efficiently handles shotcrete, refractory materials, stucco, plaster, and other cement-based mixes.
Whether you're working on infrastructure, mining, tunnel construction, or industrial maintenance, the RMX-5000 provides the performance, durability, and efficiency required for continuous operation.
High-Performance Concrete Mixer Pump for Demanding Job Sites
A dependable Concrete Mixer Pump must provide consistent material flow, powerful pumping pressure, and reliable mixing. The RMX-5000 is engineered to meet these requirements with a maximum 2,200 PSI piston face pressure, allowing contractors to pump dense materials over long distances while maintaining excellent application quality.
Its heavy-duty construction makes it an ideal choice for projects that require dependable equipment in challenging environments.
Key Features of the RMX-5000 Concrete Mixer Pump
Ultra High-Pressure Pumping System
The RMX-5000 features a 3" × 18" ultra high-pressure swing tube pump designed for demanding construction applications.
Key advantages include:
2,200 PSI pumping pressure
Long-distance material delivery
Smooth and consistent pumping performance
Suitable for dense refractory shotcrete and conventional shotcrete
Large Hydraulic Mixing Capacity
The RMX-5000 offers two mixing configurations to match different project requirements.
Hydraulic Paddle Mixer
1,000 lb. capacity
Planetary gearbox drive
Optimized for refractory materials
Hydraulic Spiral Mixer
1,000 lb. capacity
Designed for conventional shotcrete, stucco, and plaster applications
Both systems ensure uniform material consistency, improving productivity and reducing material waste.
Easy Maintenance and Efficient Operation
Routine maintenance is simplified with a hydraulic receiving hopper lift, providing quick access to the swing tube assembly for cleaning and servicing.
Additional standard features include:
3-inch heavy-duty side discharge
Hydraulic receiving hopper with agitator
Fill Rite water meter
Reliable solid-state electronics
CE Certified design
Technical Specifications
Specification Details
Pump Type 3" × 18" Ultra High Pressure Swing Tube
Pump Pressure 2,200 PSI
Output Capacity 0–5 Cubic Yards Per Hour
Mixer Capacity 1,000 lb
Hopper Capacity 1,200 lb Hydraulic Receiving Hopper
Discharge 3" Side Discharge
Trailer Single 6,000 lb Capacity Axle
Dimensions 165" × 76" × 63"
Weight 5,000 lbs
Available Power Options
The RMX-5000 Concrete Mixer Pump is available with two dependable power systems.
Kubota Diesel Engine
Kubota V3600
66 HP
Water-cooled diesel engine
Ideal for outdoor and remote job sites
Electric Motor
50 HP Electric Motor
Suitable for indoor applications and industrial facilities
Optional Equipment
Increase efficiency with a range of available options:
2,000 PSI Hydraulic Pressure Washer
Vogel Automatic Lubrication System
150-Gallon Water Tank with 2" Flow Meter
Spare Tire
Pendant Remote Control
Wireless Remote Control
Skid-Mounted Configuration with Forklift Tubing
Applications
The RMX-5000 Concrete Mixer Pump is designed for a variety of construction and industrial applications, including:
Concrete pumping
Shotcrete placement
Refractory installation
Tunnel construction
Mining operations
Bridge and highway repair
Retaining wall construction
Slope stabilization
Cement plants
Steel mills
Petrochemical facilities
Power plants
Stucco application
Plaster pumping
Industrial furnace maintenance
Benefits of the RMX-5000 Concrete Mixer Pump
Contractors and industrial operators rely on the RMX-5000 because it combines powerful pumping capability with dependable mixing performance.
Key Benefits
Ultra high-pressure pumping up to 2,200 PSI
Pumps concrete, shotcrete, refractory materials, stucco, and plaster
High-capacity 1,000 lb hydraulic mixing system
Durable 3-inch swing tube pump design
Easy maintenance with hydraulic hopper lift
Choice of diesel or electric power
CE Certified for quality and safety
Built for continuous heavy-duty operation
Why Choose the RMX-5000?
The RMX-5000 stands out as a professional-grade Concrete Mixer Pump that delivers exceptional productivity on demanding projects. Its advanced hydraulic system, rugged construction, and versatile mixer options make it suitable for contractors seeking reliable equipment for commercial, industrial, and infrastructure applications.
From refractory work to shotcrete and specialty concrete pumping, the RMX-5000 helps improve efficiency while reducing downtime and maintenance costs.
Concrete Mixer Pump RMX-5000 High-Pressure Mixer/Pump for Industrial Construction
