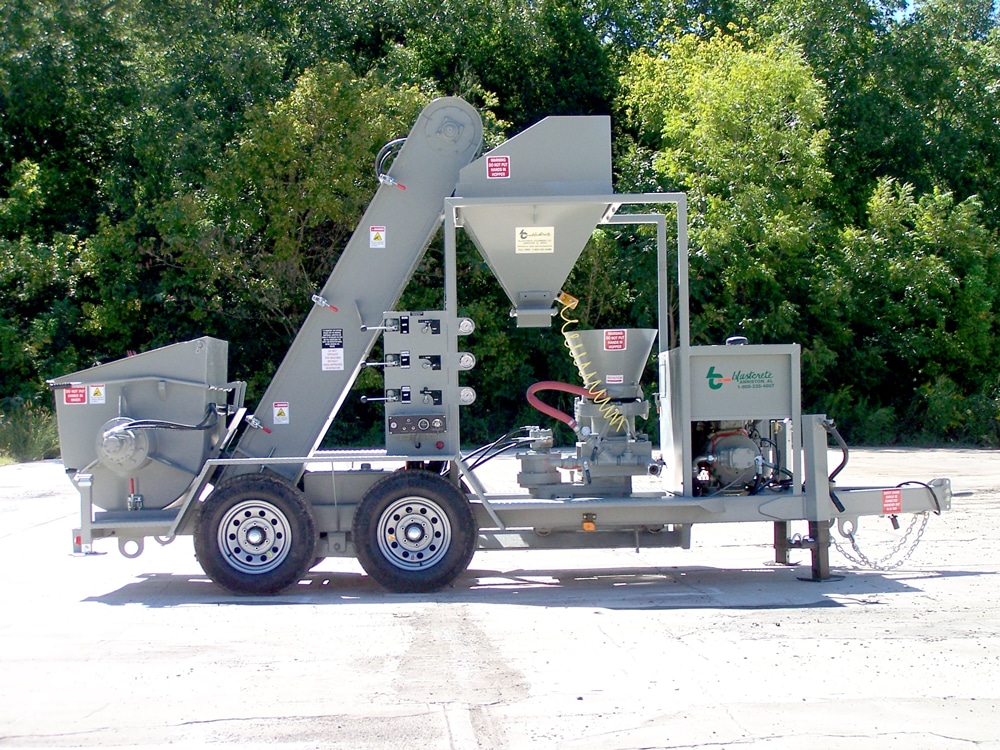

Hydraulic Mixer Pump RMX-5000 Ultra High-Pressure Solution for Refractory, Shotcrete & Industrial Applications

RMX-5000 Hydraulic Mixer Pump for Professional Construction Projects

The RMX-5000 Hydraulic Mixer Pump is engineered to provide superior mixing and high-pressure pumping performance for contractors and industrial operators. Combining a powerful hydraulic mixing system with an ultra high-pressure 3-inch swing tube pump, the RMX-5000 is designed to handle refractory materials, shotcrete, stucco, plaster, and other cementitious mixes with exceptional efficiency.

Built for demanding environments, this heavy-duty machine delivers reliable operation, long-distance material pumping, and consistent output, making it an ideal choice for mining, tunneling, steel production, cement manufacturing, power plants, and commercial construction.

Why Choose the RMX-5000 Hydraulic Mixer Pump?

A high-quality Hydraulic Mixer Pump must offer dependable pumping power, efficient material mixing, and easy maintenance. The RMX-5000 is designed to meet these requirements with a durable hydraulic system, a high-capacity mixer, and a rugged pump assembly capable of delivering 2,200 PSI piston face pressure.

Whether you're installing refractory linings or applying conventional shotcrete, the RMX-5000 provides the performance needed to complete projects efficiently and consistently.

Advanced Hydraulic Mixing Technology

The RMX-5000 is available with two hydraulic mixer configurations to suit different applications.

Hydraulic Paddle Mixer

Designed specifically for refractory materials, this mixer features:

1,000 lb. mixing capacity
Heavy-duty planetary gearbox drive
Uniform blending of dense refractory materials
Reliable hydraulic operation for demanding industrial environments
Hydraulic Spiral Mixer

For conventional construction materials, the RMX-5000 can be equipped with a 1,000 lb. hydraulic spiral mixer that is ideal for:

Shotcrete
Stucco
Plaster
Cement-based mixes

Both mixer options ensure consistent material quality before pumping, improving productivity and application performance.

High-Pressure Swing Tube Pump

At the heart of the RMX-5000 Hydraulic Mixer Pump is a 3" × 18" ultra high-pressure swing tube pump engineered for continuous heavy-duty operation.

Pump Features
Maximum 2,200 PSI piston face pressure
Smooth and continuous material flow
Excellent long-distance pumping capability
Heavy-duty swing tube design for reliable operation
Suitable for dense refractory and conventional shotcrete applications

The swing tube system is built to handle abrasive materials while maintaining efficient pumping performance throughout the project.

Standard Features

The RMX-5000 includes a wide range of features designed to improve efficiency and simplify maintenance.

Hydraulic receiving hopper lift for easy access during cleaning and servicing
1,200 lb. receiving hopper with hydraulic agitator
3-inch heavy-duty side discharge
Fill Rite water meter
Reliable solid-state electronics
CE Certified construction for quality and safety

These features help reduce downtime while keeping the machine operating at peak performance.

Technical Specifications
Specification Details
Pump Type 3" × 18" Ultra High Pressure Swing Tube
Pump Pressure 2,200 PSI
Mixer Capacity 1,000 lb Hydraulic Paddle or Spiral Mixer
Output 0–5 Cubic Yards Per Hour
Hopper Capacity 1,200 lb Hydraulic Receiving Hopper
Discharge 3" Side Discharge
Trailer Single 6,000 lb Capacity Axle with Electric Brakes
Dimensions 165" × 76" × 63"
Weight 5,000 lbs
Available Power Options

The RMX-5000 Hydraulic Mixer Pump can be configured to match your project requirements.

Kubota Diesel Engine
Kubota V3600
66 HP
Water-cooled diesel engine
Ideal for remote construction and mining sites
Electric Motor
50 HP electric motor
Quiet and efficient operation
Excellent for indoor industrial facilities
Optional Equipment

Expand the machine's capabilities with optional accessories:

2,000 PSI Hydraulic Pressure Washer
Vogel Automatic Lubrication System
150-Gallon Water Tank with 2" Flow Meter
Spare Tire
Pendant Remote Control
Wireless Remote Control
Skid-Mounted Configuration with Forklift Tubing

These options help improve maintenance, mobility, and overall job site efficiency.

Applications

The RMX-5000 Hydraulic Mixer Pump is designed for a wide variety of construction and industrial applications, including:

Refractory installation
Dense refractory shotcrete
Conventional shotcrete
Concrete pumping
Tunnel construction
Underground mining
Steel mills
Cement plants
Petrochemical facilities
Power stations
Industrial furnace repair
Stucco application
Plaster pumping
Bridge rehabilitation
Infrastructure development
Benefits of the RMX-5000 Hydraulic Mixer Pump

The RMX-5000 delivers outstanding value by combining high-pressure pumping with dependable hydraulic mixing technology.

Key Benefits
Ultra high-pressure pumping up to 2,200 PSI
High-capacity 1,000 lb. hydraulic mixer
Long-distance material pumping
Heavy-duty 3-inch swing tube pump
Easy maintenance with hydraulic hopper lift
Available with diesel or electric power
Rugged industrial construction
CE Certified quality
Designed for continuous heavy-duty operation
Improve Job Site Efficiency with the RMX-5000

The RMX-5000 Hydraulic Mixer Pump is built to help contractors increase productivity while maintaining consistent material quality. Its advanced hydraulic mixing system, reliable pumping performance, and durable construction make it a dependable solution for demanding industrial and commercial projects.

Whether your application involves refractory linings, shotcrete placement, stucco, plaster, or specialty cementitious materials, the RMX-5000 delivers the power and reliability required to keep projects on schedule.
