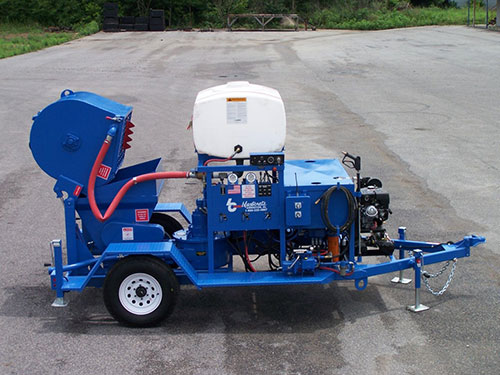

RMX-5000 Conventional Shotcrete Pump for Efficient Material Mixing and Placement
The RMX-5000 Conventional Shotcrete Pump is a powerful and versatile pumping system designed for professional contractors working with shotcrete, plaster, stucco, and cement-based materials. Combining an advanced 3-inch ultra high-pressure swing tube pump with a high-capacity hydraulic mixer, the RMX-5000 delivers consistent material flow, reliable operation, and excellent performance for demanding construction projects.
Built for both conventional shotcrete and specialty applications, the RMX-5000 provides the flexibility needed for infrastructure projects, commercial construction, concrete repair, and industrial applications.
Advanced Conventional Shotcrete Pump Technology
A Conventional Shotcrete Pump must provide consistent pumping pressure, reliable material handling, and smooth application performance. The RMX-5000 is engineered to meet these requirements through its powerful hydraulic system and durable swing tube pumping technology.
Key performance features include:
3" × 18" ultra high-pressure swing tube pump
2,200 PSI piston face pressure
Reliable pumping of conventional shotcrete materials
Long-distance material delivery capability
Consistent output for professional applications
The RMX-5000 helps contractors achieve efficient shotcrete placement while maintaining excellent material quality and productivity.
Designed for Conventional Shotcrete Applications
Conventional shotcrete is widely used for structural repair, construction reinforcement, and specialty concrete applications. The RMX-5000 provides the pumping power and mixing capability required for these projects.
Typical applications include:
Concrete repair projects
Tunnel construction
Swimming pool construction
Slope stabilization
Retaining wall construction
Bridge rehabilitation
Infrastructure improvements
Commercial construction
Underground construction
The RMX-5000 allows operators to pump shotcrete materials efficiently while maintaining consistent placement and finish quality.
High-Capacity Hydraulic Spiral Mixer for Shotcrete
The RMX-5000 is available with a 1,000 lb. capacity hydraulic spiral mixer designed specifically for conventional shotcrete and plaster applications.
Hydraulic Spiral Mixer Benefits
1,000 lb. mixing capacity
Efficient hydraulic drive system
Uniform material blending
Consistent mix quality
Suitable for high-volume applications
The spiral mixing system helps prepare materials evenly before pumping, improving application performance and reducing material inconsistencies.
Refractory and Multi-Application Mixing Capability
In addition to conventional shotcrete applications, the RMX-5000 can also be equipped with a 1,000 lb. hydraulic paddle mixer for refractory materials.
Hydraulic Paddle Mixer Features
Planetary gearbox drive
Heavy-duty refractory mixing capability
Excellent performance with dense materials
Reliable hydraulic operation
This flexibility allows contractors to use the RMX-5000 across multiple industries and applications.
Ultra High-Pressure Swing Tube Pump Performance
The RMX-5000 Conventional Shotcrete Pump features an advanced 3-inch swing tube pumping system designed for powerful and dependable material transfer.
Pumping Advantages
2,200 PSI piston face pressure
Smooth material delivery
Heavy-duty construction
Excellent performance over long distances
Designed for continuous operation
The swing tube design provides reliable pumping performance for conventional shotcrete and other cement-based materials.
Key Features of the RMX-5000 Conventional Shotcrete Pump
The RMX-5000 includes advanced features designed to improve productivity, maintenance, and operator convenience.
Standard Features
Ultra high-pressure 3" × 18" swing tube pump
1,000 lb. hydraulic spiral mixer
1,000 lb. hydraulic paddle mixer option
Hydraulic receiving hopper lift
Easy access to swing tube section for cleaning and maintenance
Fill Rite water meter
3" HD side discharge
Reliable solid-state electronics
CE Certification
RMX-5000 Technical Specifications
Specification Details
Pump Type 3" × 18" Ultra High Pressure Swing Tube
Pump Pressure 2,200 PSI
Mixer Capacity 1,000 lb Hydraulic Spiral or Paddle Mixer
Output Capacity 0–5 Cubic Yards Per Hour
Discharge 3" Side Discharge
Hopper Capacity 1,200 lb Receiving Hopper with Hydraulic Agitator
Trailer Single 6,000 lb Capacity Axle with Electric Braking and Lights
Dimensions 165" × 76" × 63"
Weight 5,000 lbs
Power Options for the RMX-5000
The RMX-5000 Conventional Shotcrete Pump is available with dependable power options for different job site requirements.
Kubota Diesel Engine
Kubota V3600
66 HP
Water-cooled diesel engine
Ideal for outdoor construction environments
Electric Motor
50 HP electric motor
Suitable for indoor facilities
Efficient operation where electrical power is available
Optional Equipment
Additional accessories are available to enhance the performance and convenience of the RMX-5000.
Options include:
2,000 PSI hydraulic pressure washer
Vogel automatic lubrication system
150-gallon water tank with 2" flow meter
Spare tire mounted
Pendant remote control
Wireless remote control
Skid-mounted frame with forklift tubing
Benefits of the RMX-5000 Conventional Shotcrete Pump
The RMX-5000 provides contractors with a reliable solution for conventional shotcrete and multi-purpose pumping applications.
Main Advantages
High-pressure pumping up to 2,200 PSI
Consistent shotcrete material delivery
Large-capacity hydraulic mixing system
Long-distance pumping capability
Durable swing tube pump design
Easy cleaning and maintenance access
Flexible mixer configurations
Diesel and electric power options
Built for demanding construction environments
Why Choose the RMX-5000?
The RMX-5000 Conventional Shotcrete Pump combines powerful pumping technology with efficient hydraulic mixing to deliver dependable performance on challenging projects. Its ability to handle conventional shotcrete, plaster, stucco, and specialty materials makes it a versatile solution for contractors and industrial users.
From concrete repair and infrastructure construction to large-scale shotcrete applications, the RMX-5000 provides the reliability, power, and flexibility needed for professional results.
Conventional Shotcrete Pump RMX-5000 High-Performance Mixer/Pump for Reliable Concrete Applications
