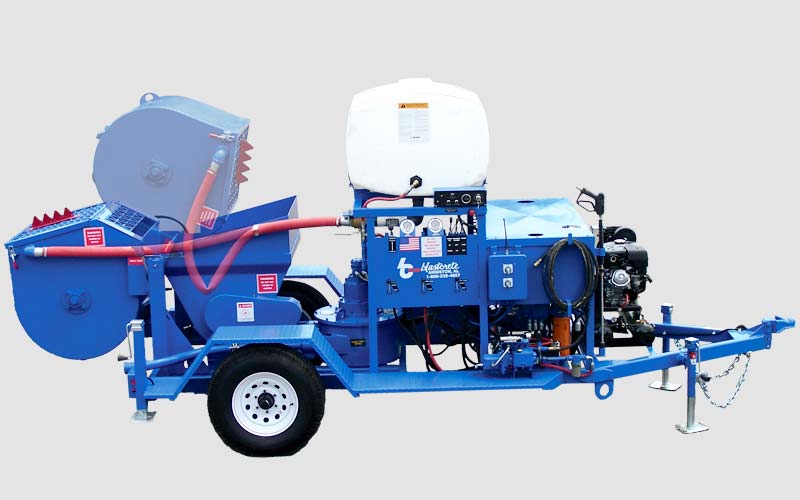

1000 lb Spiral Mixer with Kubota Diesel Mixer Pump: RMX-5000 High-Performance Pumping Solution

RMX-5000 Mixer / Pump for Reliable Shotcrete, Plaster, and Construction Applications

The RMX-5000 Mixer / Pump is a powerful ultra high-pressure 3-inch swing tube mixer pump designed for demanding refractory, shotcrete, stucco, and plaster applications. Equipped with a 1000 lb spiral mixer and a reliable Kubota diesel mixer pump power system, the RMX-5000 provides excellent mixing consistency and high-performance pumping capability for professional contractors.

Designed for extreme jobsite conditions, the RMX-5000 combines a heavy-duty hydraulic mixing system with high-pressure pumping technology to deliver dependable material placement over long distances.

1000 lb Spiral Mixer for Efficient Material Mixing

The RMX-5000 features a 1000 lb. capacity hydraulic spiral mixer designed for conventional shotcrete and plaster applications. This powerful mixing system ensures consistent material preparation before pumping, helping maintain smooth operation and uniform application quality.

Key benefits of the spiral mixer include:

Large 1000 lb material capacity
Efficient mixing for shotcrete and plaster materials
Hydraulic operation for reliable performance
Consistent material blending for improved pumping results

For refractory applications, the machine can also be configured with a 1000 lb. capacity hydraulic paddle mixer with planetary gearbox drive.

Kubota Diesel Mixer Pump Performance

The RMX-5000 is available with a Kubota V3600 66 HP water-cooled diesel engine, providing dependable power for demanding construction environments. The diesel-powered configuration offers:

Strong performance on remote job sites
Reliable continuous operation
Efficient power delivery for pumping and mixing systems
Reduced downtime during heavy-duty applications
High-Pressure Pumping Capability

The RMX-5000 uses a 3" x 18" ultra high-pressure swing tube pump designed for difficult pumping conditions. With 2,200 PSI piston face pressure, the system is suitable for:

Dense conventional shotcrete
Refractory shotcrete
Long-distance pumping applications
Industrial construction projects
RMX-5000 Features
2200 PSI piston face pressure for high-pressure shotcrete applications
1000 lb. hydraulic paddle mixer with planetary gearbox drive
1000 lb. hydraulic spiral mixer for shotcrete and plaster applications
Hydraulic receiving hopper lift for easy cleaning and maintenance
Fill Rite water meter
Convenient 3" HD side discharge
Reliable solid-state electronics
CE certification
RMX-5000 Specifications
Pump System
Pump Type: 3" x 18" Ultra High Pressure Swing Tube
Pump Pressure: 2,200 PSI
Mixer System
Capacity: 1,000 lb.
Hydraulic Paddle Mixer for refractory applications
Hydraulic Spiral Mixer for conventional shotcrete and plaster applications
Output and Discharge
Output: 0–5 cubic yards per hour
Discharge: 3" side discharge
Hopper and Trailer
Hopper Capacity: 1,200 lb. receiving hopper with hydraulic agitator
Trailer: Single 6,000 lb. capacity axle with electric braking and lights
Machine Dimensions
Dimensions: 165" x 76" x 63"
Weight: 5,000 lbs
Power Options

The RMX-5000 is available with:

Kubota V3600 66 HP water-cooled diesel engine
50 HP electric motor

These power options allow users to select the best configuration for their specific operating environment.

Optional Equipment

Available options include:

2,000 PSI hydraulic pressure washer
Vogel auto lubrication system
150-gallon water tank with 2" flow meter
Spare tire mounted
Pendant or wireless remote control
Skid-mounted configuration with forklift tubing
Applications of the RMX-5000 Kubota Diesel Mixer Pump

The RMX-5000 is suitable for many demanding applications, including:

Shotcrete spraying
Stucco and plaster pumping
Refractory installation
Tunnel construction
Mining projects
Industrial repair work
Heavy-duty concrete placement
Why Choose the RMX-5000?

The RMX-5000 with a 1000 lb spiral mixer and Kubota diesel engine delivers the durability, power, and versatility needed for professional pumping operations. Its combination of high-pressure performance, large-capacity mixing, and reliable diesel power makes it an ideal choice for contractors requiring consistent results in challenging construction environments.
