High Performance Refractory Mixer Pump for Industrial Applications

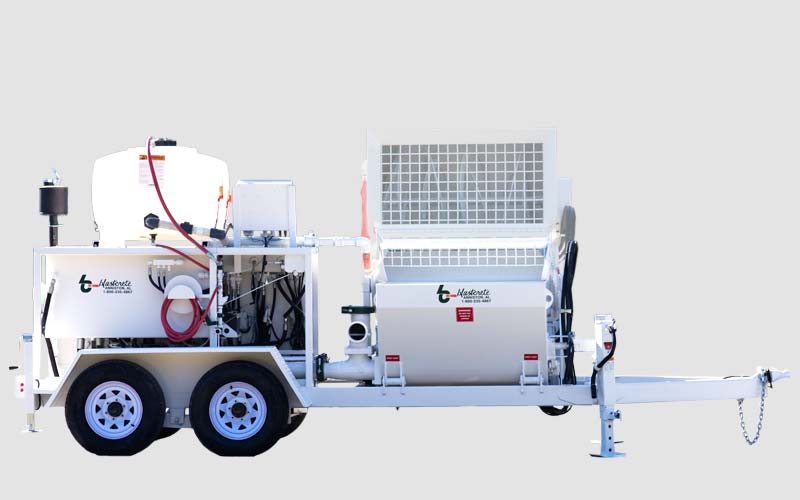

When you need dependable refractory equipment for demanding industrial projects, selecting the right refractory equipment manufacturer is essential. The RMX-5000 Mixer / Pump is engineered as a high-performance pumping and mixing solution for refractory materials, shotcrete, stucco, plaster, and other specialized construction applications.
Built with an ultra high-pressure 3-inch swing tube pump system, the RMX-5000 delivers powerful material placement over extreme distances while maintaining consistent mixing quality. Contractors and industrial operators can request mixer pump quotation for a machine designed to improve productivity, reduce downtime, and handle challenging pumping conditions.
RMX-5000 Mixer / Pump Features
Ultra High-Pressure Refractory Pumping System
The RMX-5000 features a 3" x 18" ultra high-pressure swing tube pump with 2,200 PSI piston face pressure. This powerful design supports demanding applications such as:
Refractory shotcrete installation
Dense conventional shotcrete
Industrial repair projects
Long-distance material pumping
Advanced Mixing Technology
The RMX-5000 combines powerful pumping with high-capacity mixing options:
1,000 lb. capacity hydraulic paddle mixer with planetary gearbox drive for refractory applications
1,000 lb. capacity hydraulic spiral mixer for conventional shotcrete and plaster applications
The advanced mixer design provides consistent material blending for improved pumping performance.
Hydraulic Receiving Hopper Lift
Maintenance efficiency is improved with the hydraulic receiving hopper lift system. This feature provides easy access to the swing tube section, allowing faster cleaning and routine servicing.
Reliable Industrial Features
The RMX-5000 includes several features designed for professional operation:
Fill Rite water meter for accurate water control
Convenient 3-inch HD side discharge
Reliable solid-state electronics
CE certification
RMX-5000 Mixer / Pump Specifications
Specification Details
Pump Type 3" x 18" Ultra High Pressure Swing Tube
Pump Pressure 2,200 PSI
Output 0–5 Cubic Yards Per Hour
Mixer 1,000 lb. Hydraulic Paddle Mixer / 1,000 lb. Hydraulic Spiral Mixer
Discharge 3" Side Discharge
Hopper 1,200 lb. Receiving Hopper with Hydraulic Agitator
Trailer Single 6,000 lb. Capacity Axle with Electric Braking and Lights
Dimensions 165" x 76" x 63"
Weight Approximately 5,000 lbs
Power Options
The RMX-5000 is available with powerful drive configurations:
Diesel Engine Option
Kubota V3600 66 HP water-cooled diesel engine
Electric Motor Option
50 HP electric motor
These options allow customers to select the best configuration for mobile or stationary jobsite requirements.
Optional Equipment
The RMX-5000 can be customized with additional accessories:
2,000 PSI hydraulic pressure washer
Vogel automatic lubrication system
150-gallon water tank with 2-inch flow meter
Spare tire mounted
Pendant or wireless remote control
Skid-mounted configuration with forklift tubing
Applications of the RMX-5000 Refractory Equipment
The RMX-5000 is suitable for a variety of professional applications, including:
Furnace and kiln refractory repair
Industrial lining installation
Shotcrete construction
Tunnel and mining projects
Concrete restoration
Stucco and plaster pumping
Commercial construction applications
Request Mixer Pump Quotation for RMX-5000
Choosing equipment from an experienced refractory equipment manufacturer helps ensure reliable performance, durability, and long-term value. The RMX-5000 Mixer / Pump offers the combination of high-pressure pumping, efficient mixing, and rugged construction required for modern industrial applications.
Contact a qualified supplier today to request mixer pump quotation and learn how the RMX-5000 can support your refractory and shotcrete pumping requirements.
