Modern construction projects require reliable equipment for efficient concrete mixing, conveying, and spraying. The Blastcrete Multi-Rig is an integrated solution designed for field batching concrete, sand, and cement for dry-process shotcrete applications.
For contractors looking for Industrial Shotcrete Equipment or a dependable Concrete Spraying Machine, the Multi-Rig combines a high-capacity pan mixer, rubber belt conveyor, and rotary gunite machine in a mobile configuration.

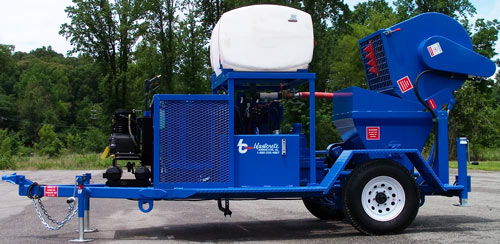

Multi-Rig Industrial Shotcrete Equipment
The Blastcrete Multi-Rig is engineered to simplify material preparation and application at the jobsite. The unit features a 1,500 lb. capacity hydrostatic pan mixer, which can be loaded easily using a skid steer.
Concrete, sand, and cement are blended in approximately 1.5 to 2 minutes. Once mixing is complete, the material is discharged through the bottom slide door onto the rubber belt conveyor. The conveyor then transfers the material directly to the rotary gunite machine.
The rotary gunite machine provides variable production from 0 to 6 tons per hour, allowing operators to adjust material output according to project requirements.
Key Features of the Multi-Rig
The Multi-Rig includes several features designed for efficient dry-process shotcrete production:
1,500 lb. capacity hydrostatic pan mixer
Variable-speed rubber belt conveyor
020 rotary gunite machine
Variable output from 0–6 tons per hour
Mixer tilt function for easier cleanup
Trailer-mounted configuration
Reliable diesel-powered operation
Concrete Spraying Machine Specifications
Specification Details
Output 0–6 tons per hour
Mounting Trailer mounted
Axles Dual electric braking axles with lights
Dimensions 249" × 76" × 72"
Weight 7,000 lbs.
Mixer Capacity 1,500 lbs.
Power Kubota V1505, 29 HP water-cooled diesel
Reliable Power for Field Applications
The Multi-Rig is powered by a Kubota V1505 29 HP water-cooled diesel engine. This configuration provides a dependable power source for field batching and shotcrete operations.
Its mobile trailer-mounted design allows contractors to transport the equipment between project locations, making it suitable for companies working across multiple jobsites.
Advantages of the Multi-Rig Concrete Spraying Machine
A dedicated Concrete Spraying Machine can help streamline the shotcrete workflow by coordinating material mixing and delivery to the gunite equipment.
The Multi-Rig offers several practical advantages:
High-Capacity Mixing
The 1,500 lb. hydrostatic pan mixer provides substantial capacity for field batching and can be loaded with a skid steer.
Fast Material Blending
The material is blended in approximately 1.5 to 2 minutes before being transferred to the conveyor.
Adjustable Production
The rotary gunite machine offers variable output from 0 to 6 tons per hour, providing operators with greater control over production.
Easy Cleanup
The mixer tilt feature is designed to make cleanup and routine maintenance more convenient.
Mobile Configuration
The trailer-mounted design, dual electric braking axles, and lights make the Multi-Rig suitable for transportation between jobsites.
Available Options
The Multi-Rig can also be configured with additional options based on project requirements:
Water booster pump
Skid-mounted configuration with forklift tubing
These options can provide greater flexibility for contractors working in different operating environments.
Applications for Industrial Shotcrete Equipment
Industrial shotcrete equipment is commonly selected for projects where concrete must be mixed, conveyed, and applied efficiently at the jobsite. The Multi-Rig's integrated design can support dry-process shotcrete operations where mobile batching and controlled material delivery are important.
By combining the mixer, conveyor, and rotary gunite machine, the system provides a streamlined equipment configuration for contractors seeking a practical solution for shotcrete production and application.
Get a Quote for Multi-Rig Equipment
If you are researching Industrial Shotcrete Equipment or comparing options for a Concrete Spraying Machine, the Blastcrete Multi-Rig offers a mobile, integrated system for dry-process shotcrete applications.
