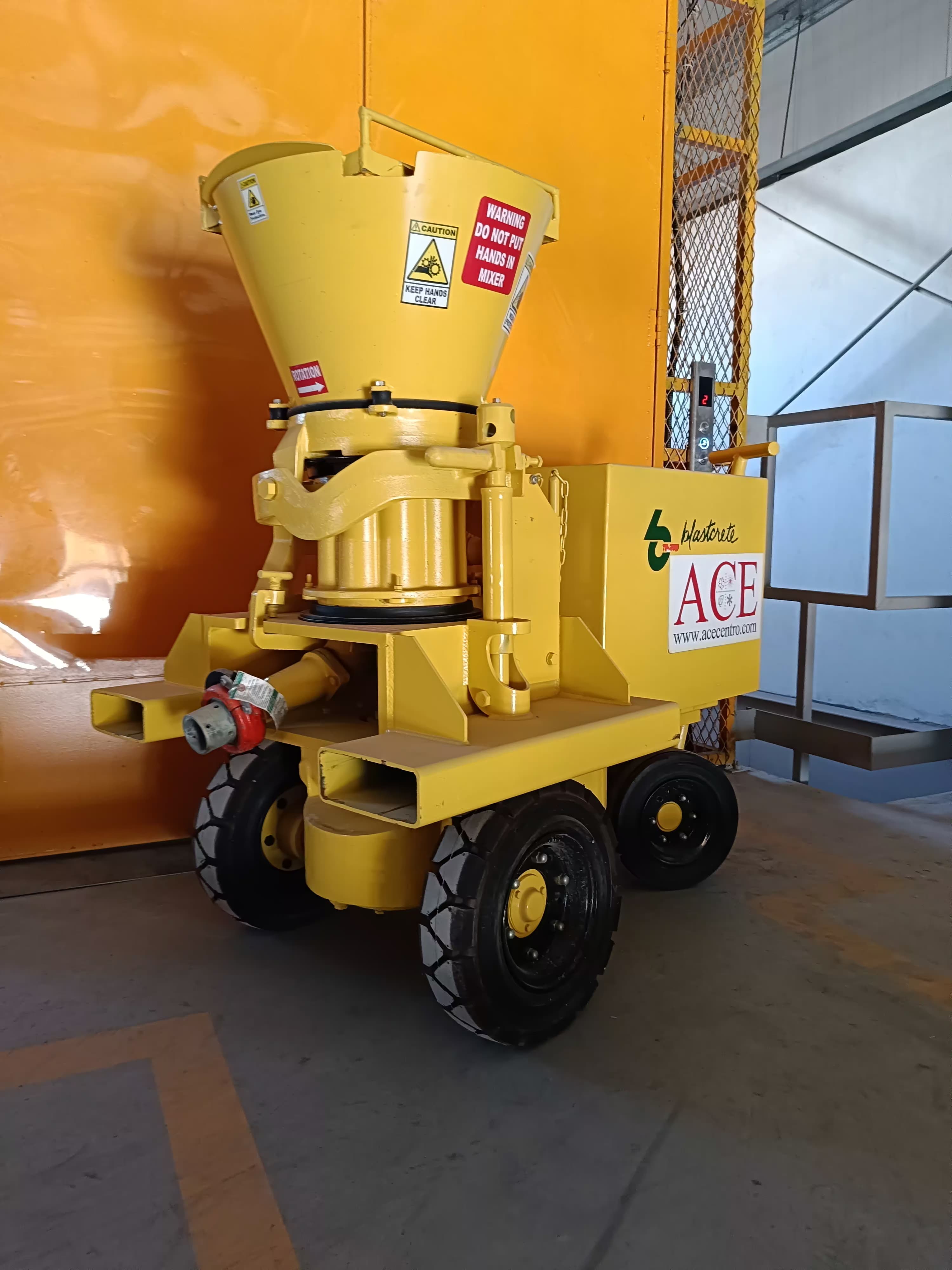

The Blastcrete Model H 020 is a hydraulic rotary Gunite Machine Attachment designed for contractors who need precise material output with variable-speed production. Operating from 0 to 5 cubic yards per hour, the H 020 provides adjustable material delivery for suitable professional gunite applications.
One of its key advantages is its 225 CFM minimum air requirement. Because the H 020 is hydraulically powered, it requires only 225 CFM of air while using 10 GPM at 1,500 PSI hydraulic power.
Gunite Machine with 225 CFM Air Requirement
For contractors planning a complete gunite equipment setup, air capacity is an important consideration. The H 020 requires only 225 CFM minimum, providing a relatively straightforward compressed-air requirement for a hydraulic gunite machine.
The machine's hydraulic requirement is 10 GPM at 1,500 PSI and is universal with any hydraulic power unit capable of supplying this capacity. Contractors should verify that their supporting hydraulic and air equipment meets these specifications before operation.
Variable-Speed Hydraulic Operation
The H 020 provides variable-speed output from 0 to 5 cubic yards per hour. This allows operators to adjust material delivery according to the requirements of the application.
Precise material output control is one of the machine's primary features, helping operators manage production rather than working at a single fixed output rate.
Genuine Piccola Single-Point Clamping System
The H 020 is equipped with the proven Genuine Piccola single-point clamping system. This straightforward clamping design secures the rotor and contributes to the machine's controlled operation.
The H 020 also offers a rotor of your choice, providing flexibility when configuring the Gunite Machine Attachment for a particular application.
Key Features
The Blastcrete H 020 includes:
Genuine Piccola Single-Point Clamping System
Precise Material Output Control
Universal Mounting Plate
Forklift Pickup Tubing
Rotor of Your Choice
Variable output from 0–5 cubic yards per hour
225 CFM minimum air requirement
10 GPM @ 1,500 PSI hydraulic requirement
H 020 Specifications
Specification Details
Air Requirement 225 CFM minimum
Output 0–5 cubic yards per hour
Hydraulic Requirement 10 GPM @ 1,500 PSI
Outlet 1.5"
Maximum Aggregate ¾"
Mounting Skid Mount
Estimated Wear Pad Life 200 tons
Dimensions 34" × 34" × 50"
Weight 1,250 lbs.
1.5-Inch Outlet and ¾-Inch Aggregate Capacity
The H 020 features a 1.5-inch outlet and accommodates aggregate up to ¾ inch. These specifications give contractors defined equipment parameters when planning suitable material and application requirements.
The estimated wear pad life is approximately 200 tons, providing a general reference for maintenance planning. Actual wear life may vary depending on materials, operating conditions, and usage.
Compact Skid-Mounted Design
The H 020 is mounted on a skid and measures 34" × 34" × 50", with a weight of approximately 1,250 pounds. The compact configuration provides a practical equipment footprint for suitable jobsites.
Forklift pickup tubing helps facilitate transportation and positioning, while the universal mounting plate provides installation flexibility.
Efficient Air and Hydraulic Requirements
The H 020's hydraulic design separates its primary machine drive from its compressed-air requirement. It requires 10 GPM at 1,500 PSI hydraulic power while maintaining a minimum air requirement of 225 CFM.
This combination can be useful when contractors are planning equipment around available hydraulic power and compressed-air capacity.
Why Choose the H 020 Gunite Machine Attachment?
The Blastcrete H 020 combines variable-speed hydraulic operation, precise material output control, and proven Piccola clamping technology in a compact skid-mounted package.
For contractors seeking a Gunite Machine Attachment with a 225 CFM air requirement, the H 020 offers:
0–5 cubic yards per hour variable output
225 CFM minimum air requirement
10 GPM @ 1,500 PSI hydraulic requirement
1.5-inch outlet
¾-inch maximum aggregate
Universal mounting plate
Forklift pickup tubing
Rotor selection
Quote Now or Download the Brochure
Looking for a gunite machine with 225 CFM air requirement? The Blastcrete H 020 provides variable-speed hydraulic operation and precise material output in a compact skid-mounted design.
Gunite Machine with 225 CFM Air Requirement: Blastcrete H 020
