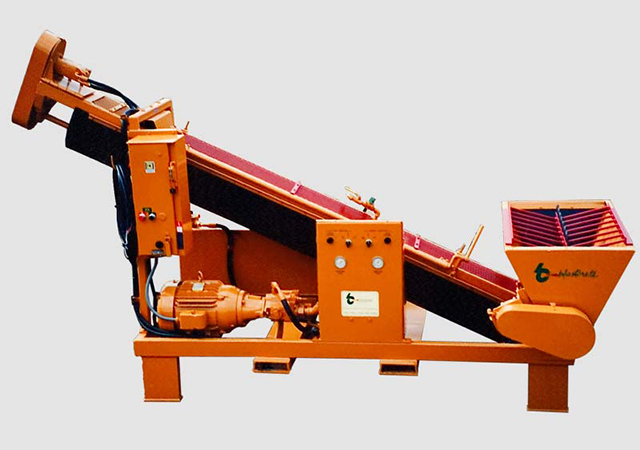

The Blastcrete H 020 gunite machine is a hydraulic rotary Gunite Machine Attachment designed for applications requiring controlled and adjustable material placement. With variable-speed output from 0 to 5 cubic yards per hour, the H 020 can provide precise material delivery for suitable gunite machine for concrete rehabilitation applications.
The machine requires 10 GPM at 1,500 PSI hydraulic power and is universal with any hydraulic power unit capable of providing this capacity. Because it is hydraulically powered, the H 020 has a minimum air requirement of only 225 CFM.
Gunite Equipment for Concrete Rehabilitation
Concrete rehabilitation projects can require controlled placement of repair material on existing structures. The H 020 provides variable-speed material output and precise control, making it a practical equipment option for suitable rehabilitation applications.
Its output can be adjusted from 0 to 5 cubic yards per hour, allowing operators to regulate material delivery according to project requirements.
Key Features of the H 020
The Blastcrete H 020 is equipped with:
Genuine Piccola Single-Point Clamping System
Precise Material Output Control
Universal Mounting Plate
Forklift Pickup Tubing
Rotor of Your Choice
Variable output from 0–5 cubic yards per hour
Hydraulic requirement of 10 GPM @ 1,500 PSI
Minimum air requirement of 225 CFM
Blastcrete H 020 Specifications
Specification Details
Air Requirement 225 CFM minimum
Output 0–5 cubic yards per hour
Hydraulic Requirement 10 GPM @ 1,500 PSI
Outlet 1.5"
Maximum Aggregate ¾"
Mounting Skid Mount
Estimated Wear Pad Life 200 tons
Dimensions 34" × 34" × 50"
Weight 1,250 lbs.
Precise Material Output for Rehabilitation Work
One of the H 020's primary advantages is its precise material output control. The variable-speed system allows operators to adjust production according to the requirements of the work.
For suitable concrete rehabilitation applications, this flexibility can help contractors manage material delivery when working on existing concrete structures or areas requiring controlled material placement.
Actual suitability depends on the specific repair method, material being used, project specifications, and site conditions.
Hydraulic Rotary Operation
The H 020 is powered by a compatible hydraulic power unit requiring 10 GPM at 1,500 PSI. This universal hydraulic requirement allows the machine to work with any hydraulic power unit capable of meeting the specified capacity.
Its hydraulic design also keeps the minimum air requirement at 225 CFM, providing clearly defined requirements for planning the complete equipment system.
Genuine Piccola Single-Point Clamping System
The H 020 uses the proven Genuine Piccola single-point clamping system. The system provides rotor clamping while supporting the machine's controlled material output.
A rotor of your choice is also available, giving contractors flexibility when configuring the Gunite Machine Attachment for their particular application.
1.5-Inch Outlet and ¾-Inch Aggregate
The machine features a 1.5-inch outlet and can accommodate aggregate up to ¾ inch. These specifications should be considered when selecting compatible materials for a concrete rehabilitation project.
The estimated wear pad life is approximately 200 tons, providing a general reference for maintenance planning. Actual wear life can vary depending on material characteristics, operating conditions, production levels, and maintenance practices.
Compact Skid-Mounted Configuration
The H 020 is skid mounted and measures 34" × 34" × 50", with an approximate weight of 1,250 pounds.
The universal mounting plate provides installation flexibility, while forklift pickup tubing can assist with transportation and positioning on suitable jobsites.
Why Choose the H 020 for Concrete Rehabilitation?
When selecting a gunite machine for concrete rehabilitation, contractors can consider several equipment factors, including output control, hydraulic requirements, air capacity, aggregate size, equipment dimensions, and handling requirements.
The H 020 offers:
0–5 cubic yards per hour variable output
Precise material output control
10 GPM @ 1,500 PSI hydraulic requirement
225 CFM minimum air requirement
1.5-inch outlet
¾-inch maximum aggregate
Skid-mounted construction
Genuine Piccola single-point clamping system
Universal mounting plate
Forklift pickup tubing
Rotor selection options
These specifications make the H 020 a practical Gunite Machine Attachment for suitable professional applications where adjustable material delivery and hydraulic operation are required.
Quote Now or Download the Brochure
Looking for a gunite machine for concrete rehabilitation with variable-speed operation and precise material output control? The Blastcrete H 020 provides a compact hydraulic rotary solution for suitable concrete repair and rehabilitation applications.
