Looking for a reliable concrete mixer pump machine for demanding industrial applications? The Blastcrete MX-10 Mixer/Pump is a specialized mixing and pumping system designed for dense refractory shotcrete and pump-cast installations. Combining a high-torque hydraulic pan mixer with a 3-inch ultra-high-pressure swing tube piston pump, the MX-10 provides an integrated solution for preparing and delivering refractory materials in challenging industrial environments.
Since 1996, the MX-10 has been an established choice for monolithic refractory installations. With a specified pumping pressure of 2,200 PSI and a stated material delivery capacity of up to 10 tons per hour, this machine is designed to support demanding industrial material placement operations.
The MX-10 is also commonly used to pump suitable refractory materials over vertical distances exceeding 300 feet, depending on material characteristics, pipeline configuration, and operating conditions. Its swing-out receiving hopper provides convenient access to the lower hopper and swing tube section for cleaning and maintenance.
Request a Quote or Download the Brochure to discover how the Blastcrete MX-10 can support your industrial mixing and pumping requirements.

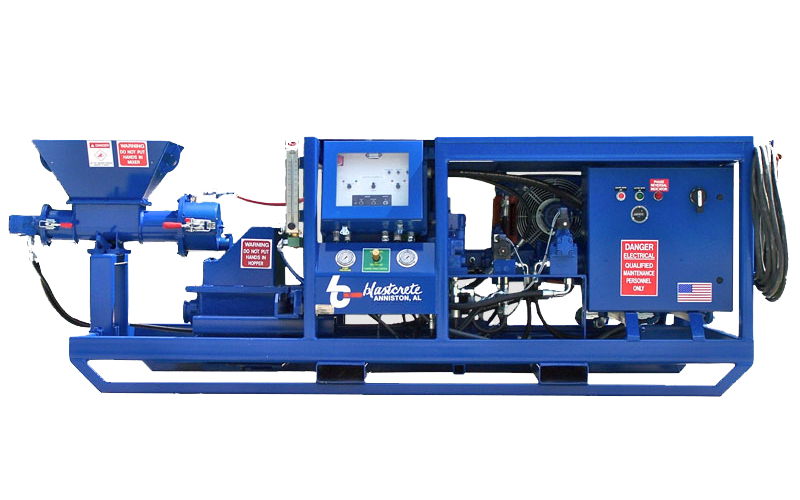

What Is the Blastcrete MX-10 Concrete Mixer Pump Machine?
The Blastcrete MX-10 is an integrated mixer and pump engineered for dense refractory shotcrete and pump-cast applications. It combines material mixing and high-pressure pumping in one machine, helping contractors prepare and deliver suitable refractory materials for demanding industrial projects.
The machine features a 2,200-pound-capacity high-torque hydraulic pan mixer and a 3-inch × 24-inch ultra-high-pressure swing tube piston pump. This combination is designed to support consistent material preparation and delivery for monolithic refractory installations.
For industrial contractors searching for a concrete mixer pump machine, the MX-10 offers a specialized configuration for refractory applications, with features designed to support pumping performance, maintenance access, and operational flexibility.
Key Features of the MX-10 Mixer/Pump
1. Ultra-High-Pressure Piston Pump
The MX-10 features a 3-inch × 24-inch ultra-high-pressure swing tube piston pump with a specified pumping pressure of 2,200 PSI.
This system is designed for demanding refractory pump-cast and shotcrete applications where compatible materials must be delivered through a suitable pumping line.
Its high-pressure configuration supports industrial installation work involving dense refractory materials and extended pumping distances.
2. High-Torque Hydraulic Pan Mixer
The MX-10 incorporates a hydraulic pan mixer with a capacity of 2,200 pounds.
The mixer has a stated mixing time of approximately 1.5 to 2 minutes, helping prepare suitable refractory materials for pumping and placement.
Proper mixing is essential for achieving the material consistency required by the installation process. Operators should follow the refractory manufacturer's recommended mixing procedures.
3. High Material Output Capacity
The MX-10 is designed to deliver up to 10 tons of refractory material per hour under suitable operating conditions.
Its technical specifications also list a volumetric output range of 0–12 cubic yards per hour. Actual output depends on material density, mix formulation, pipeline configuration, and operating conditions.
This capacity makes the machine worth considering for industrial projects that require substantial refractory material placement.
4. Vertical Pumping Capability
The MX-10 is commonly used to pump suitable refractory materials over vertical distances exceeding 300 feet.
This capability can support industrial installations where materials must reach elevated or difficult-to-access locations.
Actual pumping distance depends on material properties, pipeline diameter and layout, elevation, and job-site conditions.
5. Swing-Out Receiving Hopper
The MX-10 features a swing-out receiving hopper with a stated capacity of 2,500 pounds and a hydraulic agitator.
The swing-out design provides convenient access to the lower hopper and swing tube section for cleaning and maintenance. Forklift tubing mounted to the lower hopper also facilitates flat-pack removal.
These features support equipment servicing and handling when performed according to the manufacturer's procedures.
6. Integrated Water Measurement System
The machine includes a Fill-Rite water meter and a 20-gauge dousing bucket for fast water introduction.
These components support water measurement and material preparation. Water addition should follow the refractory manufacturer's recommended mix design to maintain the required material properties.
7. Reliable Electronic Controls
The MX-10 features solid-state electronics and solid-state valve control. CE certification is also listed among its features.
Confirm the applicable certification documentation and electrical requirements for your intended operating location before purchasing the machine.
Applications of a Concrete Mixer Pump Machine
Industrial Furnace Refractory Installation
Industrial furnaces require suitable refractory linings to withstand high temperatures and demanding operating conditions. The MX-10 is designed to mix and pump compatible refractory materials for monolithic installation projects.
Cement Kilns and Industrial Kilns
Cement kilns and other industrial kilns rely on refractory linings to protect internal surfaces from heat and process conditions. The MX-10 can support suitable refractory shotcrete and pump-cast installation work.
Boiler and Thermal Processing Equipment
Boilers and thermal processing systems may require refractory installation and maintenance. The MX-10 offers an integrated mixing and pumping configuration for compatible refractory materials used
