Industrial applications require reliable and efficient mixing solutions to prepare high-quality materials for demanding construction, refractory, and thermal processing operations. The Industrial Concrete Mixing Equipment is designed to provide consistent performance, powerful mixing capability, and dependable operation for heavy-duty industrial environments.
The Thermal Processing Equipment Mixer is engineered for applications requiring precise material preparation, including refractory castables and high-temperature processing systems. With a capacity of up to 1 metric ton of refractory castable, the 2200 LB Pan Mixer delivers excellent mixing consistency while improving productivity on industrial job sites.
Featuring a heavy-duty hydrostatic drive system and planetary gearbox technology, this mixer provides the power and reliability needed for challenging mixing applications.
High-Performance Industrial Concrete Mixing Equipment
The Industrial Concrete Mixing Equipment is built to handle demanding material preparation requirements in construction, manufacturing, and thermal processing industries. Its robust design allows operators to achieve consistent mixing results even when working with dense materials.
Common applications include:
Industrial concrete mixing
Refractory castable preparation
Thermal processing facilities
Furnace and kiln maintenance
High-temperature equipment repairs
Industrial construction projects
This equipment helps ensure uniform material quality for improved installation performance and durability.
Reliable Thermal Processing Equipment Mixer Technology
The Thermal Processing Equipment Mixer provides efficient mixing performance through a powerful hydrostatic system and heavy-duty planetary gearbox. This combination delivers the torque required to process dense refractory and industrial materials.
Key Features of Thermal Processing Equipment Mixer
Mixes up to 1 metric ton of refractory castable
1.5 to 2 minute mixing cycles
Heavy-duty planetary gearbox drive
Hydrostatic mixing operation
Consistent material blending
Designed for industrial environments
The advanced mixing system helps reduce preparation time while maintaining the required material consistency for thermal processing applications.

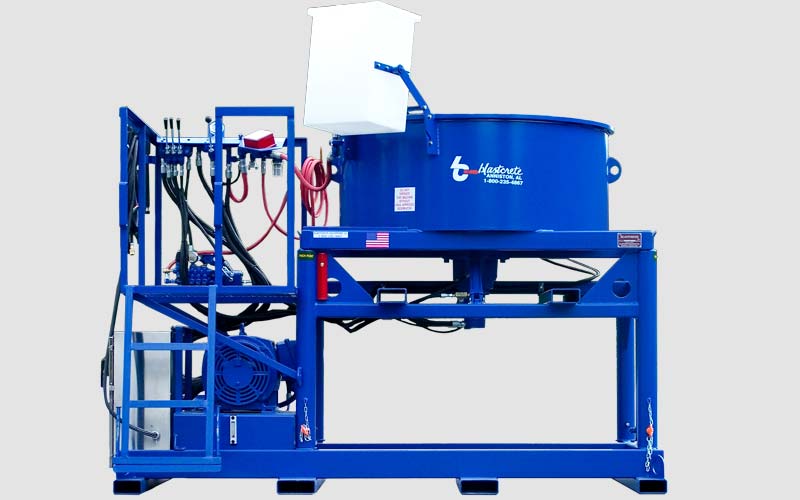

2200 LB Pan Mixer for Heavy-Duty Applications
The 2200 LB Pan Mixer provides high-capacity mixing performance for industries requiring reliable and efficient material preparation. Its large batch capacity allows operators to produce more material with fewer mixing cycles.
Benefits of the 2200 LB Pan Mixer
2200-pound mixing capacity
Handles up to 1 metric ton of refractory castable
Faster production cycles
Reduced downtime
Improved job-site efficiency
Durable industrial construction
This mixer is suitable for applications where consistent results and dependable operation are essential.
Heavy-Duty Planetary Gearbox System
The mixer is powered by a heavy-duty planetary gearbox designed to provide maximum torque and smooth operation during demanding mixing tasks.
The gearbox system provides:
Strong mixing performance
Reliable operation under heavy loads
Consistent material processing
Long service life
Reduced maintenance needs
This technology allows the mixer to handle dense materials effectively in industrial environments.
Efficient Bottom Discharge Design
The 2200 LB Pan Mixer features a bottom discharge system that allows quick and controlled unloading of mixed materials.
Bottom Discharge Advantages
Faster material transfer
Cleaner unloading process
Reduced manual handling
Improved workflow efficiency
Better control during placement
This design supports efficient operations in concrete, refractory, and thermal processing applications.
Precision Water Addition System
Accurate water control is important for achieving consistent material performance. The mixer includes a Fill-Rite Water Meter and 20-gallon dousing tank for precise water measurement.
Water Control Benefits
Accurate water addition
Improved batch consistency
Better material performance
Reduced mixing variations
Easy operator adjustment
This system helps maintain the correct material properties required for professional applications.
Operator-Friendly Mixer Design
The 2200 LB Pan Mixer includes a 15 sq. ft. operator platform designed for convenient operation and maintenance.
The control panel includes:
Forward/Stop/Reverse mixer rotation
Bottom slide door Open/Close controls
Fill-Rite Water Meter operation
Manual hydraulic mixer tilt controls for cleanout
Additional features include:
Guard rails and ladder
Forklift pickup points
Telescoping adjustable legs
Stable operating platform
These features improve safety, usability, and maintenance efficiency.
Power Configuration
The Thermal Processing Equipment Mixer is powered by:
40 HP electric motor with starter and disconnect
This power system provides reliable operation for industrial facilities requiring consistent mixing performance.
Optional Equipment
The 2200 LB Pan Mixer can be customized with additional options:
Hydraulic discharge chute
Separately mounted power supply
Hydraulic leg adjustment
2,000 PSI hydraulic pressure washer
Three adjustable discharge height settings
These options allow the mixer to be adapted for different industrial applications and operating conditions.
2200 LB Pan Mixer Specifications
Specification Details
Mixer Capacity 2200 lbs.
Material Capacity Up to 1 Metric Ton of Refractory Castable
Mixing Time 1.5–2 Minutes
Drive System Heavy-Duty Planetary Gearbox
Power 40 HP Electric Motor
Weight 4,500 lbs.
Length 120 inches
Width 72 inches
Height (Down Position) 82 inches
Height (Raised Position) 103 inches
Material Discharge Height (Down Position) 52 inches
Material Discharge Height (Raised Position) 72 inches
Why Choose the 2200 LB Pan Mixer?
The 2200 LB Pan Mixer combines high-capacity performance, durable construction, and advanced mixing technology to support industrial concrete and thermal processing applications.
Main Advantages
Designed for heavy-duty material mixing
High-capacity refractory castable preparation
Fast and consistent mixing cycles
Powerful planetary gearbox system
Accurate water measurement
Efficient bottom discharge operation
Easy operation and maintenance
Reliable industrial performance
Industrial Concrete Mixing Equipment: Advanced Thermal Processing Equipment Mixer with 2200 LB Pan Mixer
