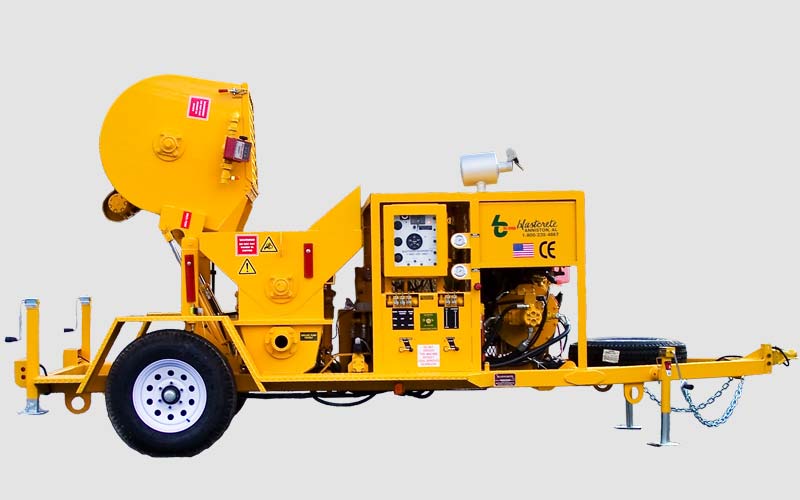

Swing Tube Mixer Pump RMX-5000 Ultra High-Pressure Pump for Refractory & Shotcrete Applications

RMX-5000 Swing Tube Mixer Pump for Superior Pumping Performance

The RMX-5000 Swing Tube Mixer Pump is a heavy-duty, ultra high-pressure machine engineered to deliver reliable mixing and pumping performance for demanding construction and industrial applications. Featuring a 3-inch swing tube pump with 2,200 PSI piston face pressure, the RMX-5000 is specifically designed to pump refractory materials, shotcrete, stucco, and plaster over extended distances while maintaining a smooth and consistent material flow.

Built for contractors who require dependable equipment in challenging environments, the RMX-5000 combines advanced hydraulic technology, high-capacity mixing, and durable construction to maximize productivity on every job site.

What Is a Swing Tube Mixer Pump?

A Swing Tube Mixer Pump uses a swing tube valve mechanism to direct mixed material from the hopper into the pumping cylinders before transferring it to the delivery line. This proven design allows the machine to handle abrasive and dense materials efficiently while reducing wear and maintaining consistent pumping pressure.

The RMX-5000 utilizes this technology to provide dependable operation in demanding refractory and shotcrete applications where reliability is essential.

Designed for High-Pressure Applications

The RMX-5000 features a 3" × 18" ultra high-pressure swing tube pump capable of delivering 2,200 PSI of piston face pressure. This high-pressure system is ideal for applications requiring long-distance pumping and the placement of dense cementitious materials.

Its robust hydraulic system helps ensure steady output while minimizing interruptions, making it suitable for continuous industrial operation.

High-Capacity Hydraulic Mixing System

To accommodate different materials and project requirements, the RMX-5000 is available with two mixer configurations.

Hydraulic Paddle Mixer

Designed specifically for refractory applications, this mixer includes:

1,000 lb. mixing capacity
Heavy-duty planetary gearbox drive
Uniform mixing of dense refractory materials
Reliable hydraulic operation
Hydraulic Spiral Mixer

Ideal for conventional construction materials, including:

Shotcrete
Stucco
Plaster
Cement-based mixes

The spiral mixer also provides a 1,000 lb. capacity, delivering consistent material preparation for efficient pumping.

Standard Features

The RMX-5000 Swing Tube Mixer Pump includes premium features that improve productivity and simplify maintenance.

Ultra high-pressure 3-inch swing tube pump
2,200 PSI piston face pressure
Hydraulic receiving hopper lift
1,200 lb. receiving hopper with hydraulic agitator
3-inch heavy-duty side discharge
Fill Rite water meter
Reliable solid-state electronics
CE Certified design

The hydraulic hopper lift provides convenient access to the swing tube assembly, allowing faster cleaning and routine maintenance while reducing equipment downtime.

Technical Specifications
Specification Details
Pump Type 3" × 18" Ultra High Pressure Swing Tube
Pump Pressure 2,200 PSI
Mixer Capacity 1,000 lb
Output Capacity 0–5 Cubic Yards Per Hour
Hopper Capacity 1,200 lb Hydraulic Receiving Hopper
Discharge 3" Side Discharge
Trailer Single 6,000 lb Capacity Axle with Electric Brakes
Dimensions 165" × 76" × 63"
Weight 5,000 lbs
Power Options

The RMX-5000 is available with two reliable power systems to meet different job site requirements.

Kubota Diesel Engine
Kubota V3600
66 HP
Water-cooled diesel engine
Excellent for remote construction projects
Electric Motor
50 HP electric motor
Suitable for indoor and industrial environments
Quiet, efficient operation where electrical power is available
Optional Equipment

Customize your RMX-5000 Swing Tube Mixer Pump with available accessories, including:

2,000 PSI Hydraulic Pressure Washer
Vogel Automatic Lubrication System
150-Gallon Water Tank with 2" Flow Meter
Spare Tire
Pendant Remote Control
Wireless Remote Control
Skid-Mounted Configuration with Forklift Tubing
Applications

The RMX-5000 is designed for a wide variety of industrial and commercial applications, including:

Refractory installation
Dense refractory shotcrete
Conventional shotcrete
Concrete repair
Tunnel construction
Underground mining
Steel mills
Cement plants
Petrochemical facilities
Power plants
Industrial furnace maintenance
Stucco application
Plaster pumping
Infrastructure construction
Bridge rehabilitation
Benefits of the RMX-5000 Swing Tube Mixer Pump

Contractors choose the RMX-5000 because it offers dependable performance, efficient material handling, and simplified maintenance.

Key Advantages
Ultra high-pressure 2,200 PSI pumping performance
Heavy-duty 3-inch swing tube pump
Long-distance material pumping
Large 1,000 lb. hydraulic mixer
Easy-access maintenance with hydraulic hopper lift
Available with diesel or electric power
Durable construction for demanding environments
CE Certified quality and safety
Built for continuous industrial operation
Why the RMX-5000 Is the Right Choice

The RMX-5000 Swing Tube Mixer Pump is engineered for professionals who need a reliable solution for refractory, shotcrete, stucco, and plaster applications. Its advanced swing tube technology, high-capacity hydraulic mixing system, and rugged design help increase productivity while reducing maintenance and operating costs.

Whether your project involves industrial furnace lining, mining operations, tunnel construction, or commercial concrete repair, the RMX-5000 delivers the performance and durability required to complete the job efficiently.
