Heavy-Duty Wood Processing Equipment for Professional Applications

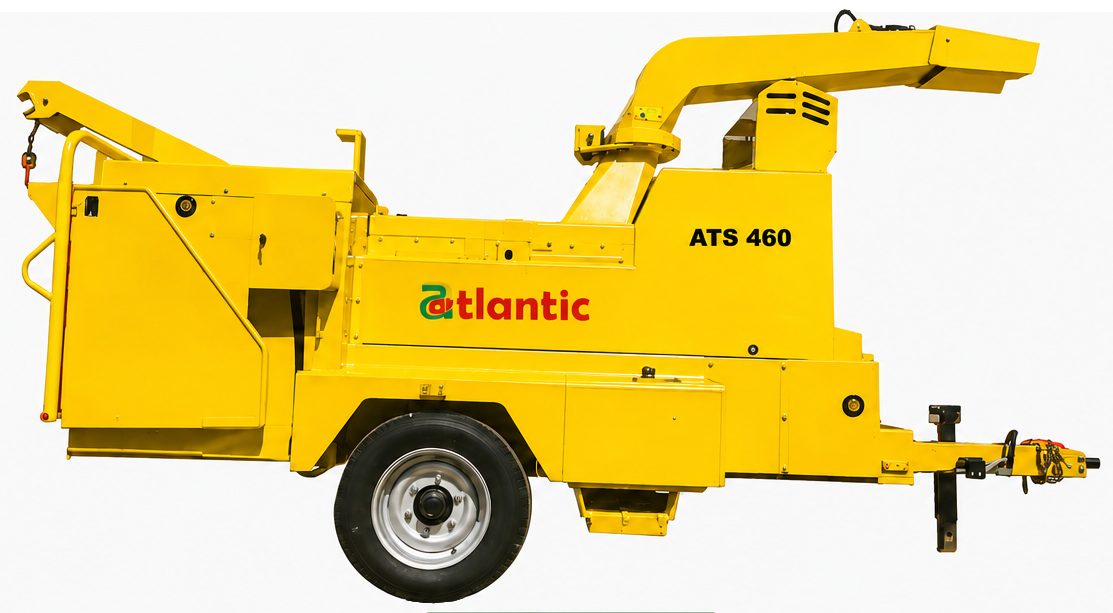

The Atlantic ATS 460 is a high-performance industrial tree shredder and wood chipper engineered for forestry contractors, municipalities, landscaping companies, agricultural operators and biomass processing applications.
With a maximum cutting capacity of 460 mm, a powerful 175 HP Cummins diesel engine, hydraulic feed system, dual feed rollers and a 914 mm four-knife cutting rotor, the ATS 460 provides efficient processing of large tree trunks, branches, logs and woody vegetation.
Designed for productivity, reliability and safe operation
Maximum Chipping Capacity
Cummins Diesel Engine
Heavy-Duty Cutting Rotor
Four-Knife Cutting System
Dual Feed Roller System
Stop, Reverse & Re-Feed Control
Machine Operating Weight
Trailer-Mounted Design
The Atlantic ATS 460 is designed to process large diameter wood and vegetation efficiently. Its 460 mm cutting capacity makes it suitable for demanding tree removal and vegetation management operations.
The heavy-duty 914 mm cutting rotor and four-knife configuration provide effective material reduction, while the hydraulic feed rollers provide controlled feeding of branches and logs.
The ATS 460 incorporates a Smart Feed control system that manages the hydraulic feed rollers during operation.
Detailed machine specifications
| Specification | ATS 460 |
|---|---|
| Machine Type | Tree Shredder / Wood Chipper |
| Maximum Cutting Diameter | ≤ 460 mm |
| Cutting System | Tool-Roller Cutting System |
| Number of Feed Roller Motors | 2 |
| Number of Knives | 4 |
| Rotor Diameter | 914 mm |
| Rotor Speed | 1,100 rpm |
| Prime Mover | 175 HP / 129 kW Diesel Engine |
| Engine Type | 6-Cylinder Cummins Diesel Engine |
| Fuel Tank Capacity | 132 Litres |
| Machine Weight | 4,200 kg |
| Dimensions (L × W × H) | 5,670 × 2,260 × 2,800 mm |
* Technical data is based on available experience and may vary depending on material, operating conditions and machine configuration. Machine design and construction are subject to technical modifications and upgrades.
Professional tree shredding and wood processing applications
Whole trees and large branches can occupy significant transportation and storage space. The ATS 460 processes bulky woody material into smaller wood chips directly at the worksite.
This can help reduce the volume of material requiring transportation and improve the efficiency of tree maintenance and vegetation management operations.
The trailer-mounted configuration allows the Atlantic ATS 460 to be moved between different work locations.
Its towing bar and mobile design make it suitable for contractors working across forestry areas, municipal projects, farms, landscaping sites and construction locations.
Heavy-duty vegetation management equipment for demanding regional applications
The Atlantic ATS 460 is suitable for professional tree shredding, wood chipping, landscaping, vegetation management and green waste processing applications across the UAE and GCC.
Typical applications include municipal landscaping, roadside vegetation maintenance, date palm plantations, golf courses, resorts, construction projects and large property maintenance operations in Dubai, Abu Dhabi, Sharjah, Al Ain and other UAE locations.
Common questions about the Atlantic ATS 460
The Atlantic ATS 460 has a maximum cutting diameter of up to 460 mm, depending on the material and operating conditions.
The ATS 460 is powered by a 175 HP (129 kW), 6-cylinder Cummins diesel engine.
Yes. The Atlantic ATS 460 is a trailer-mounted tree shredder and wood chipper designed for convenient transportation between job sites.
Yes. The machine features a hydraulic feeding system with two feed roller motors and dual hydraulic feed rollers.
Smart Feed is a feed control system that can stop, reverse and re-feed material to improve feeding control and operational efficiency.
The ATS 460 is designed for suitable tree trunks, branches, logs, wooden stumps and other woody biomass, subject to operating conditions and machine limitations.
The ATS 460 is suitable for forestry contractors, municipalities, landscaping companies, farms, plantations, golf courses, resorts, construction contractors and vegetation management companies.
Looking for a heavy-duty 460 mm tree shredder or industrial wood chipper for forestry, landscaping, municipal, agricultural or biomass applications?
